JAY Ion Cushion
JAY Ion Cushion
Couldn't load pickup availability
Choose your cushion configuration. Enable JavaScript for live configuration pricing, or contact info@inmotionservices.ca for help.

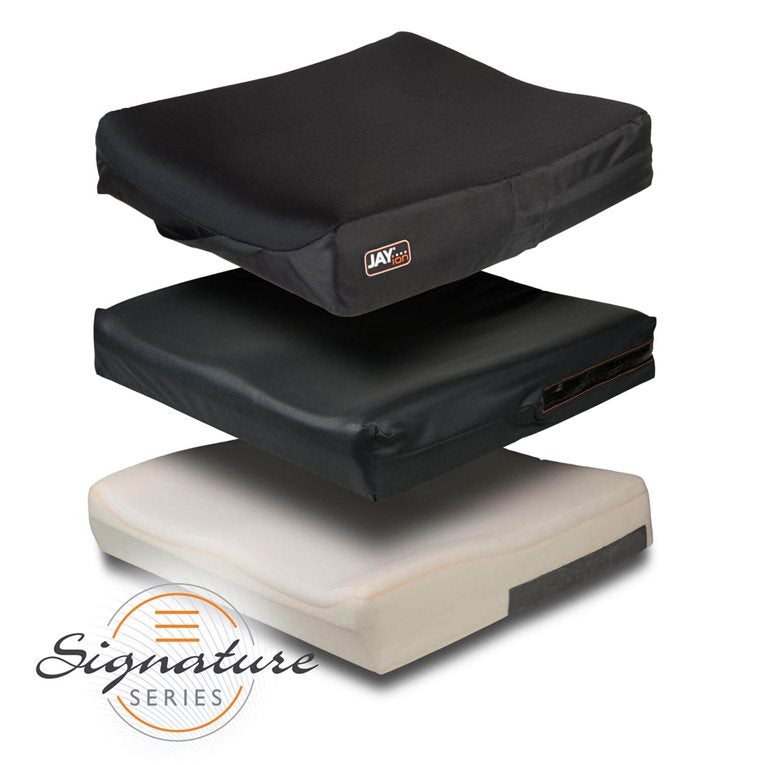

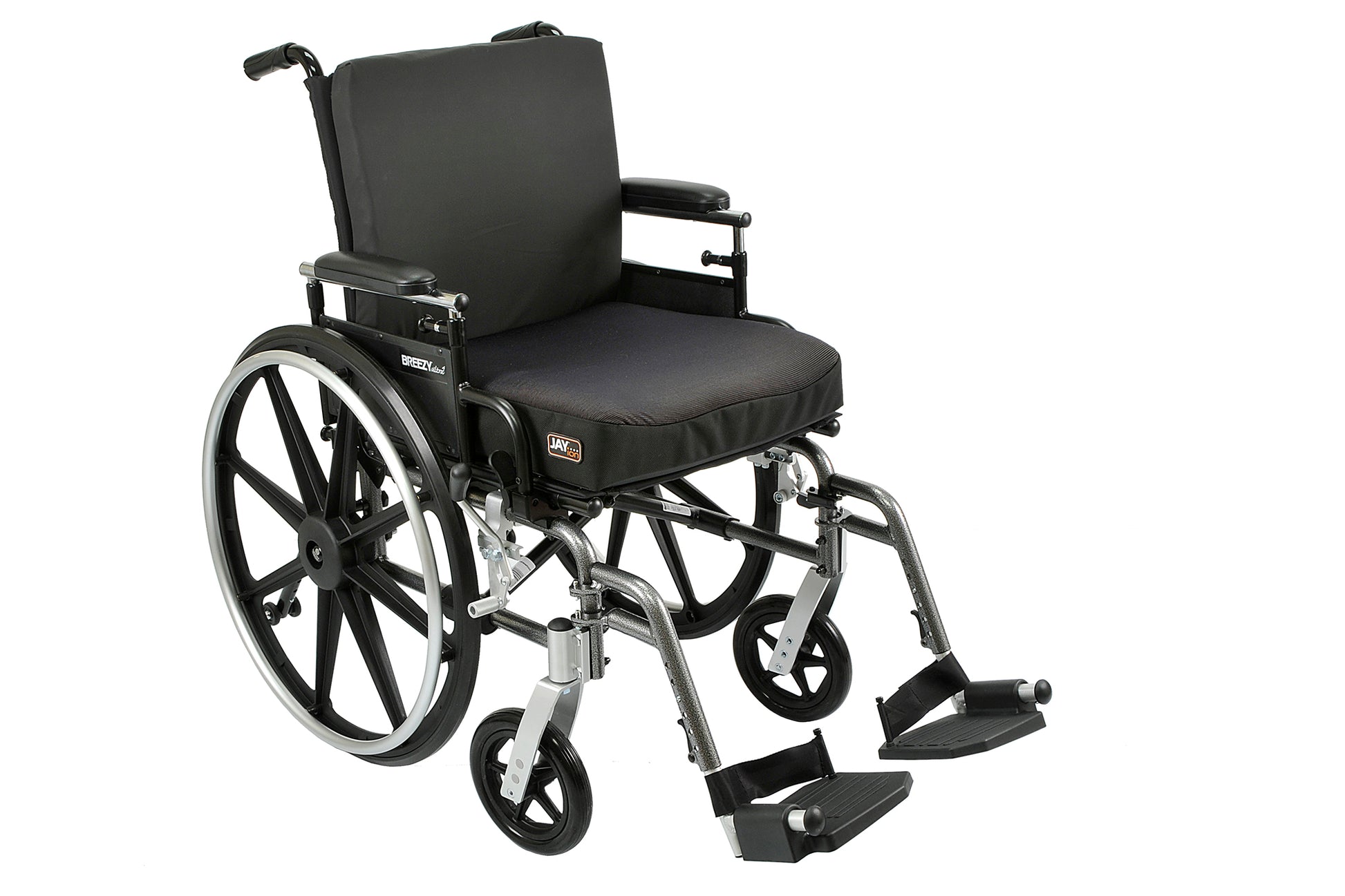

The JAY® Ion® is a comfortable skin protection and positioning wheelchair cushion composed of a multi-layered foam base, moisture resistant inner cover, and an anti-microbial outer cover.

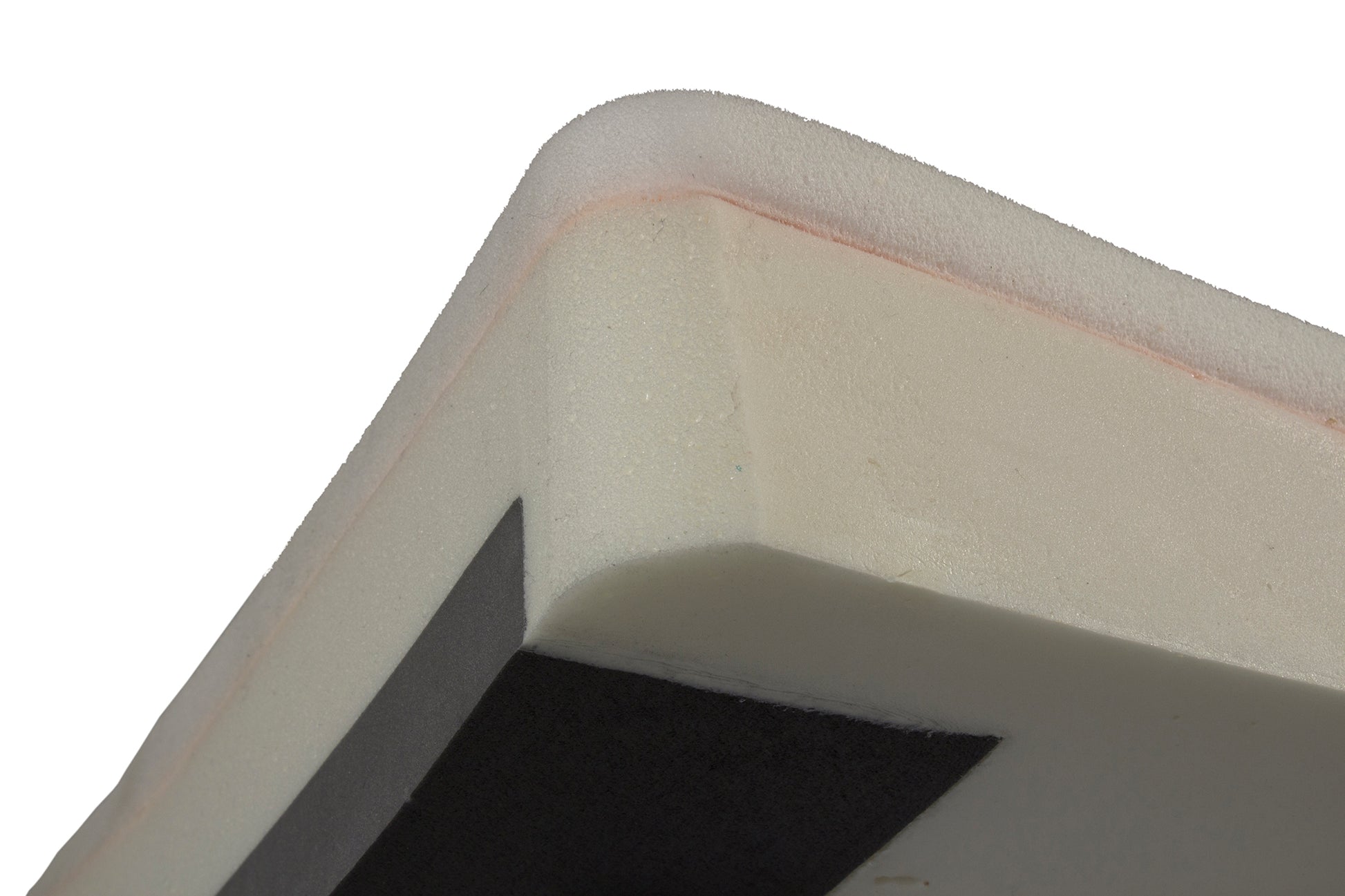

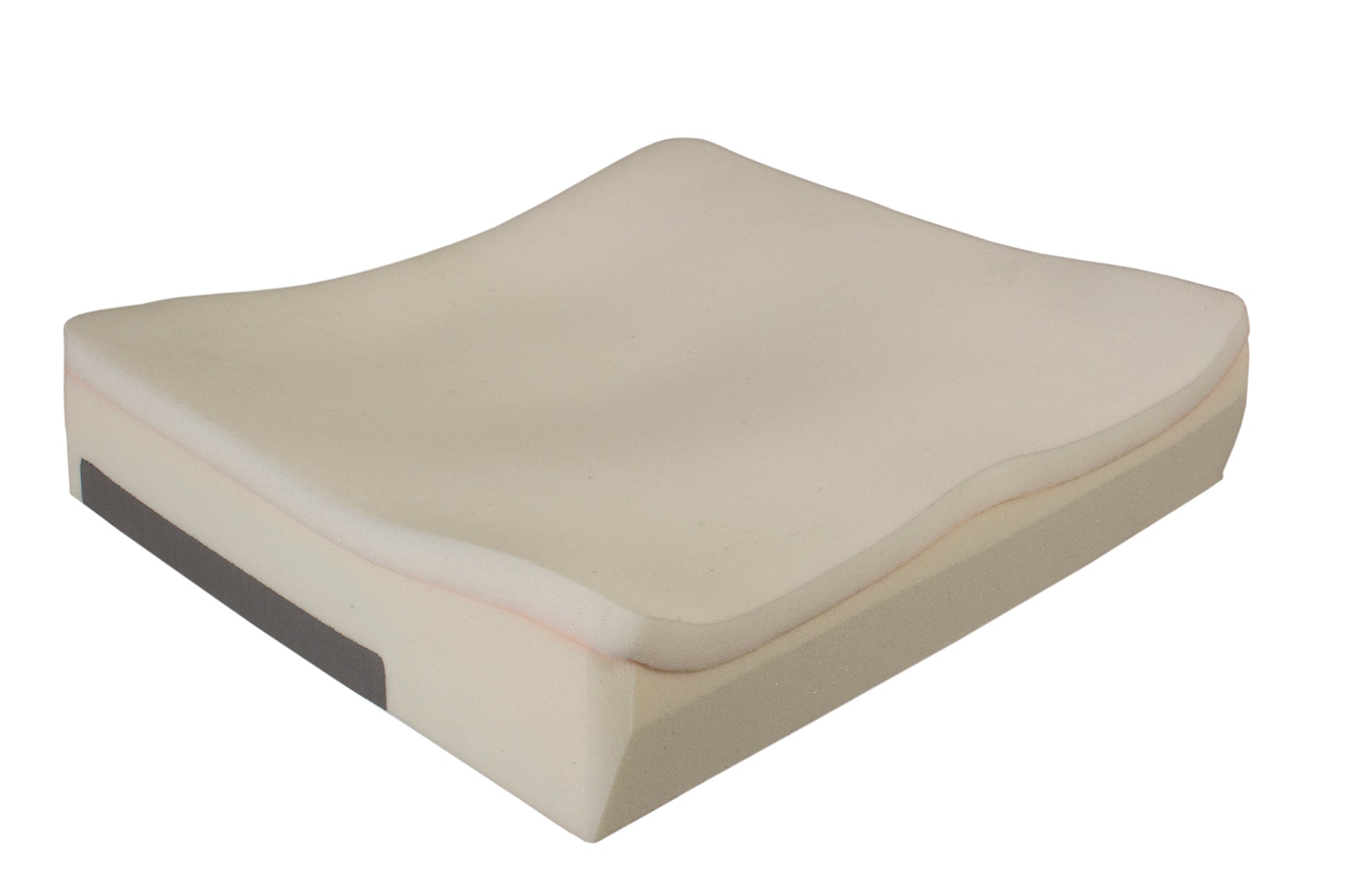

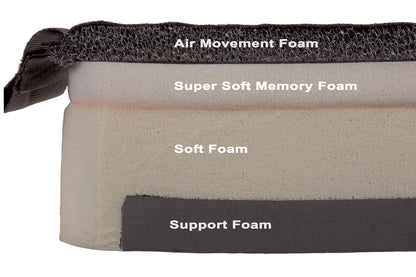

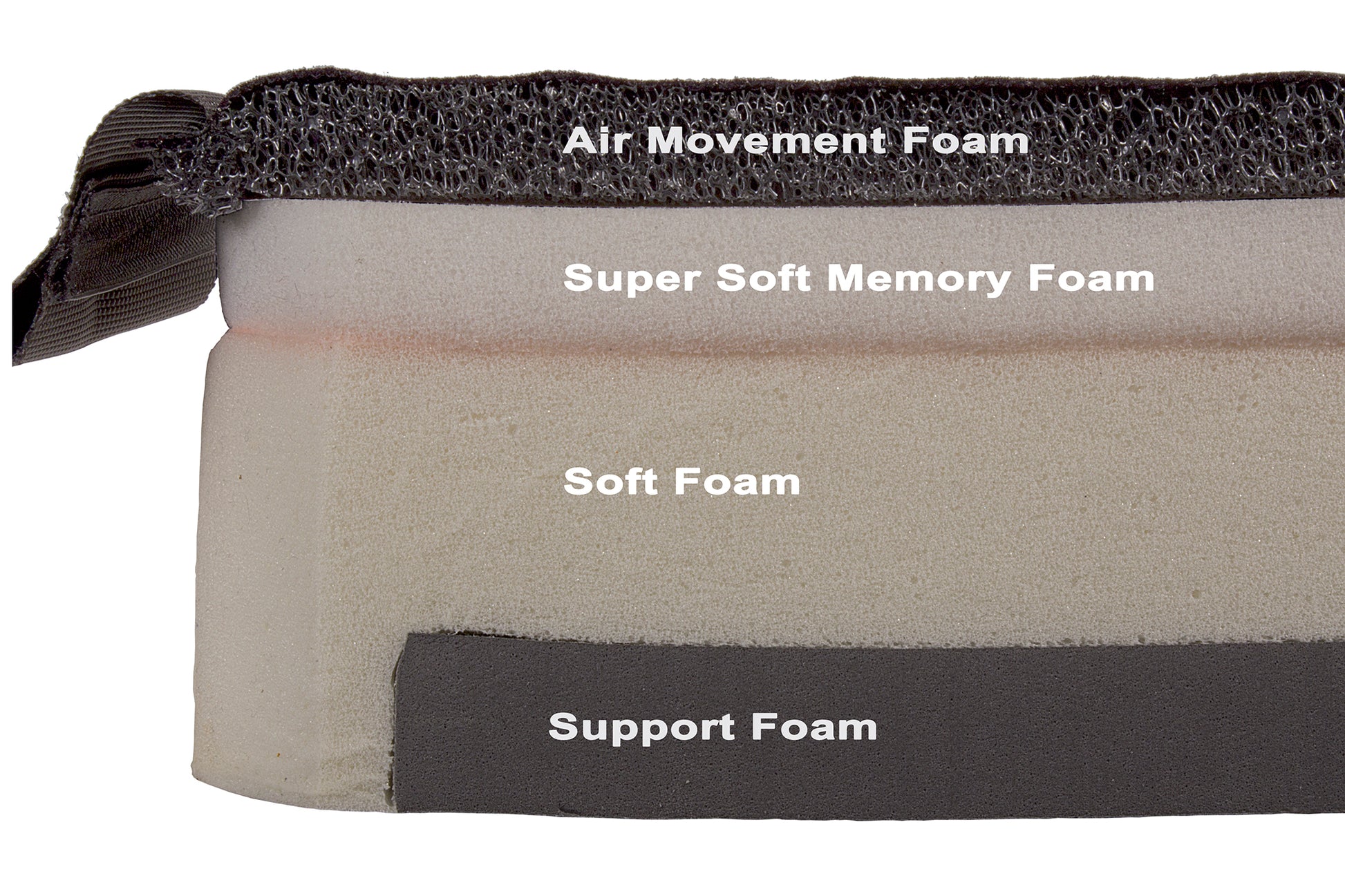

Dual-Layered Foam Base with Varying Firmness

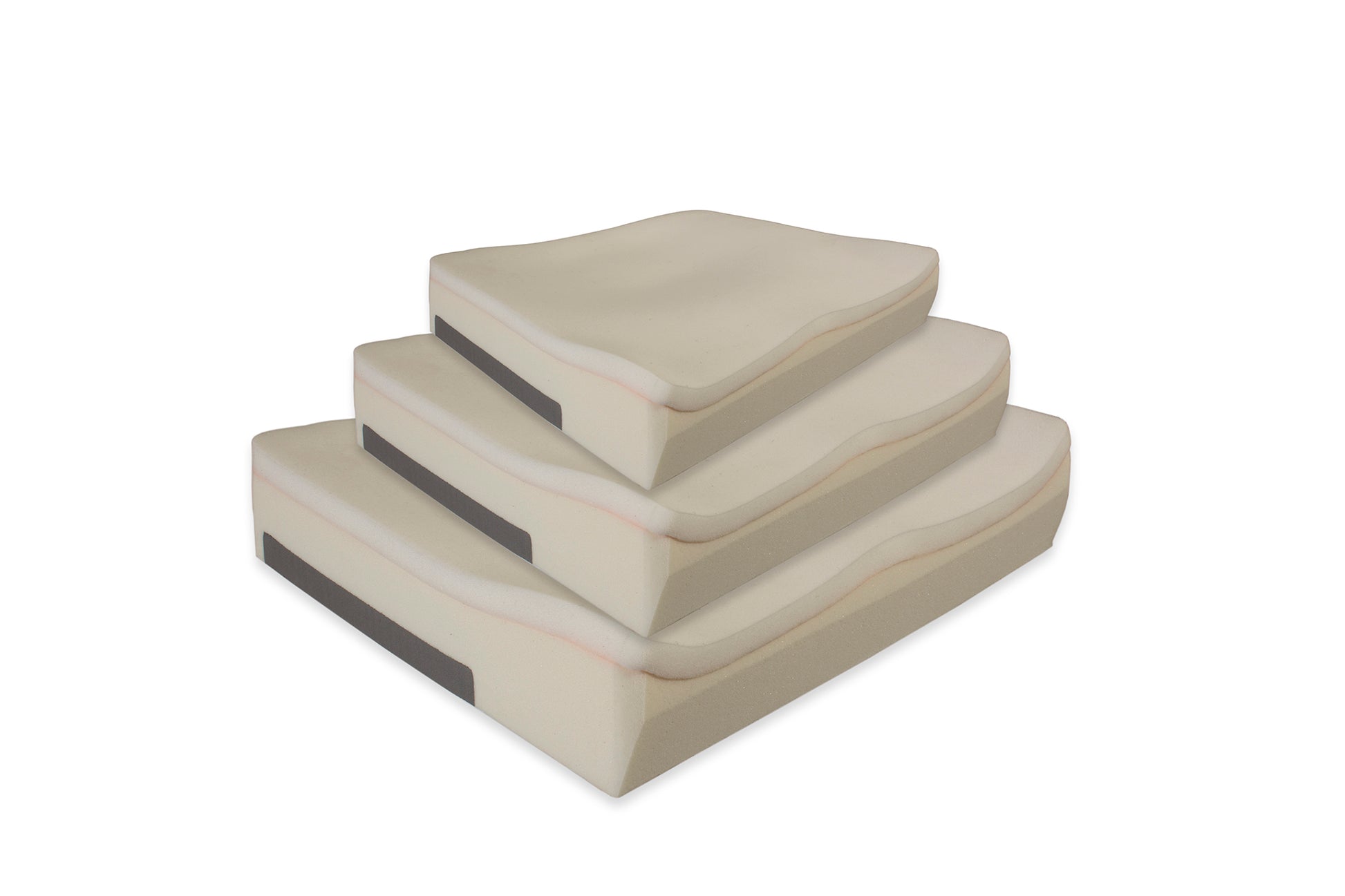

The Ion cushion features a dual-layered foam base for a combination of structural support and comfort. For optimized immersion for each individual, the foam's firmness is determined by the cushion width, which directly corresponds with client weight.

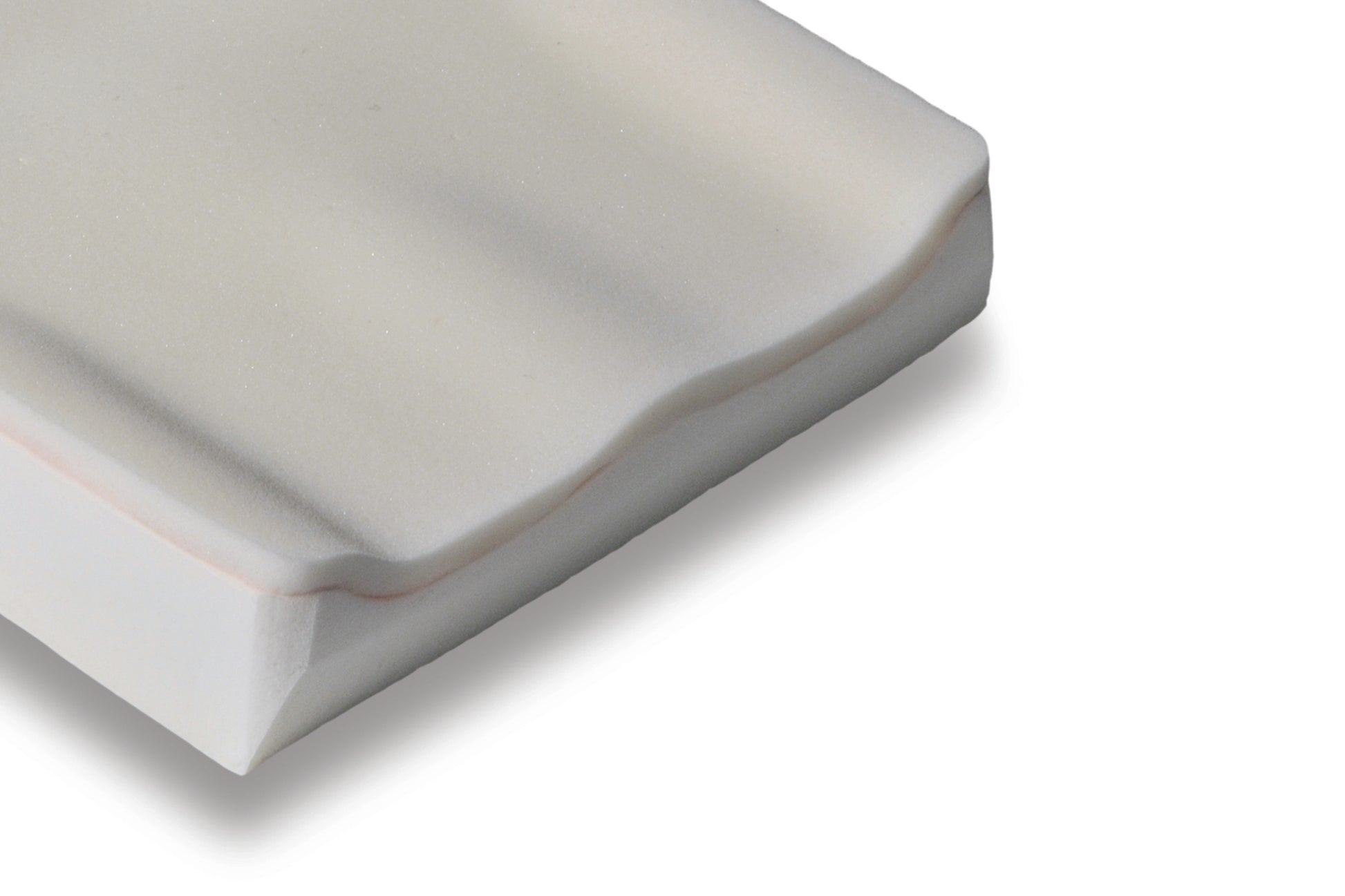

Visco™ Memory Foam Top Layer
The Ion's top layer of soft, Visco memory foam conforms to each individual and distributes weight over a larger area for pressure reduction and maximum comfort.
Innovative, Dual-Cover System

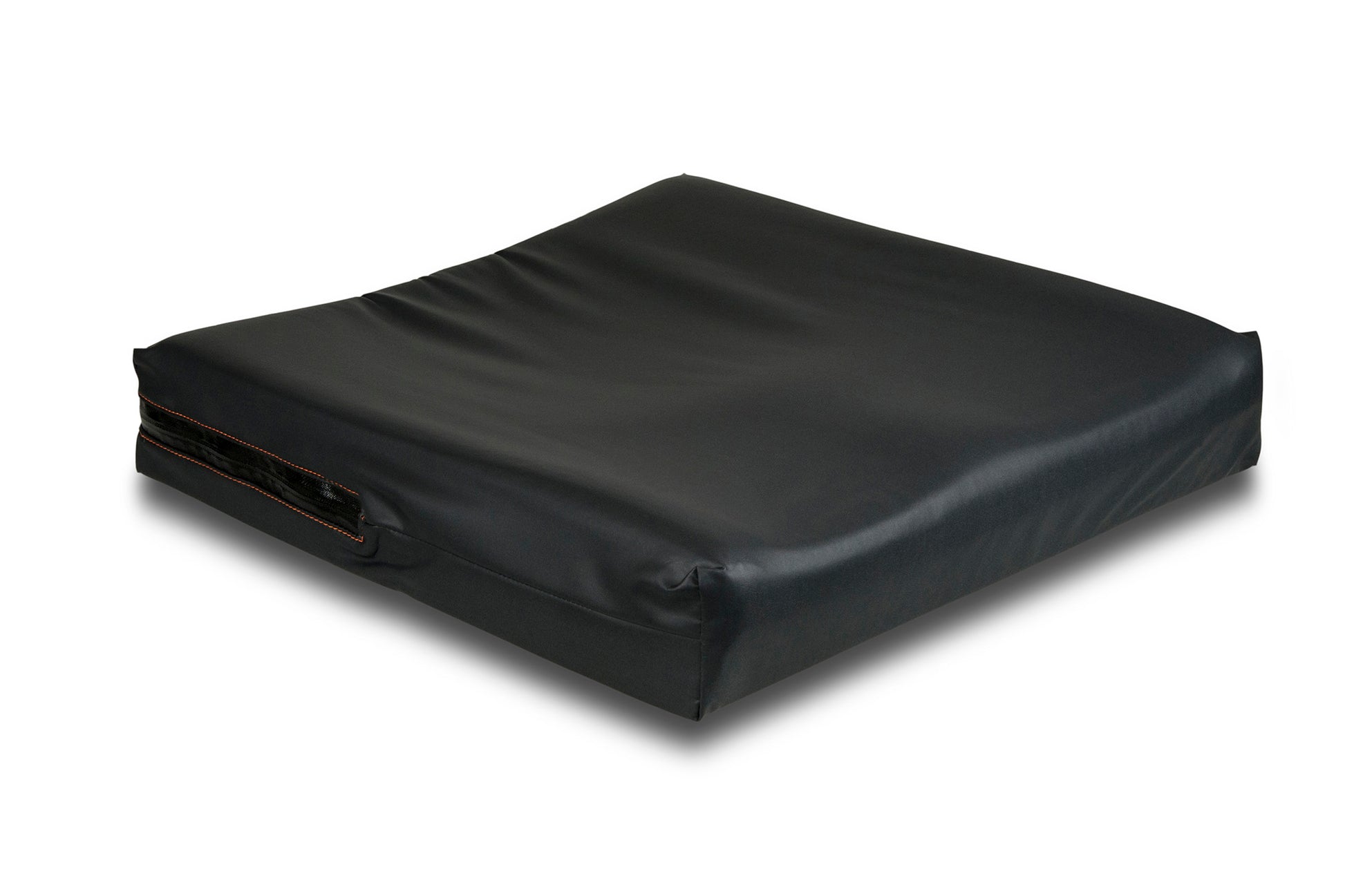

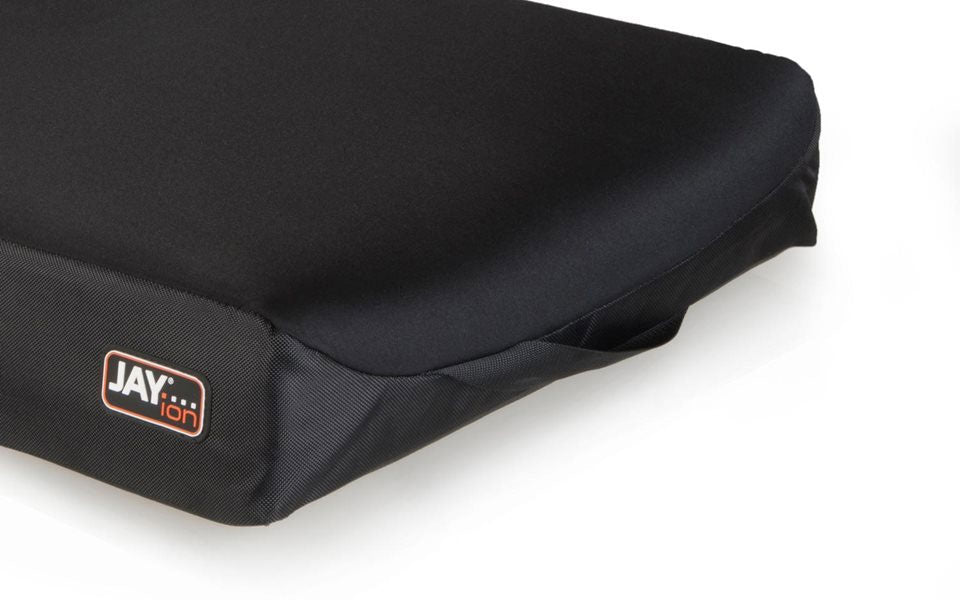

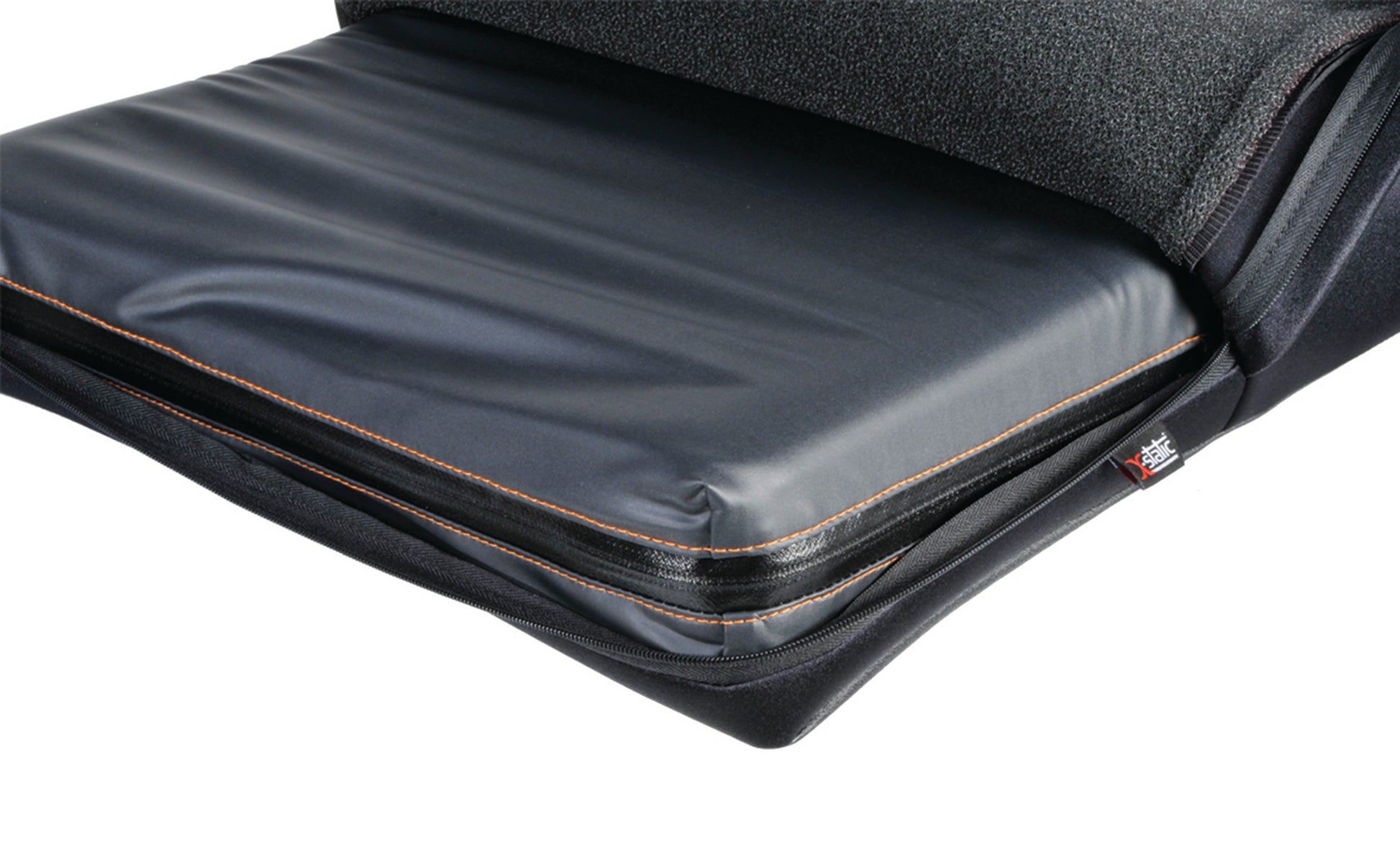

For convenience and protection, the JAY Ion features a dual-cover system. The inner cover is water-resistant and easy to wipe off and clean, while its water-resistant zipper and anti-wicking thread protect the foam base from fluids. The machine-washable, stretch outer cover reduces surface tension and utilizes naturally anti-microbial, silver-impregnated X-static® fiber. A layer of 3DX spacer fabric promotes airflow and dissipates heat and moisture for additional skin protection.
Specifications
| Product Type | Foam Cushion |
|---|---|
| Product Height | 4" |
| Product Width | 14" to 24" |
| Product Depth | 14" to 24" |
| Product Weight | 3.5 lbs. (18x18) |
| User Weight Capacity | 14" to 21" widths: 330 lbs. 22" to 24" widths: 500 lbs. |
| Base | Multi-layered foam base with optimized densities by width and soft Visco memory foam top layer |
| Inner Cover | Dartex® coated Lycra® with water resistant zipper and anti-wicking thread |
| Outer Cover | X-static® silver thread stretch |
| JAY Your Way Modifications Available | Yes |
Sizing and included components
Sizes above are the manufacturer’s nominal width × depth. Actual finished dimensions can differ. Check the measuring guide in the order form before ordering.
Includes Ionic+ outer cover, inner cover and foam base. Select the two-cover package if you need a second outer cover.
Resources and downloads
- JAY Ion Cushion Order Form (2025)
- JAY® Family Catalogue
- JAY® Your Way Catalog
- JAY® Signature Series Catalog
- JAY® Ion™ Cushion Owner's Manual
- JAY® Cushions and Backs Parts Manual
- Education in Motion - Pelvic & Spinal Postures Poster
- Education in Motion - Seating & Wheelchair Angles Reference Guide
- Education in Motion - Seating Shapes Poster
Warranty
Warranty coverage may vary by province and funding requirements. Contact In Motion Services for the terms applicable to your order.
