Evac+Chair Ulti-Mat Evacuation Sled
Evac+Chair Ulti-Mat Evacuation Sled
Couldn't load pickup availability

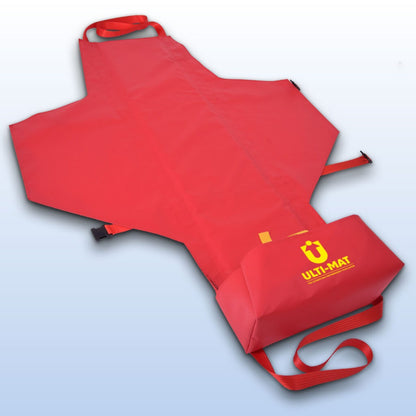

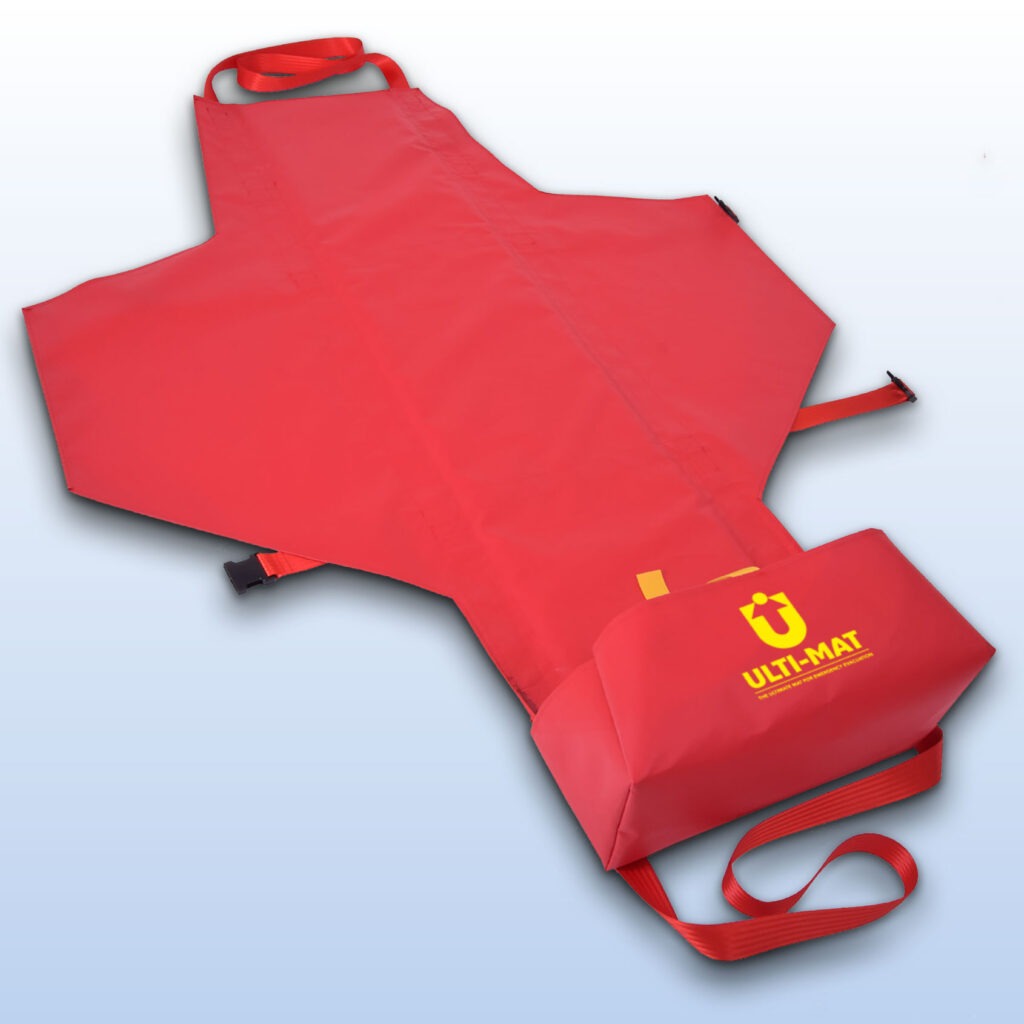

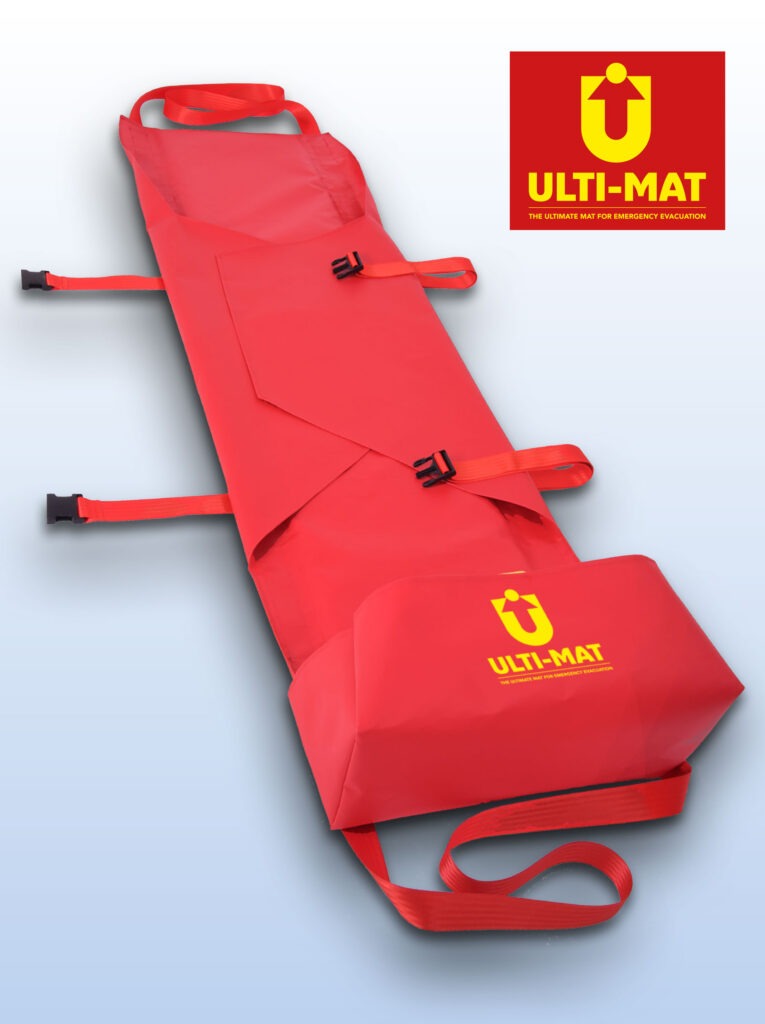

Compact evacuation mat for emergency transport
The Evac+Chair® Ulti-Mat helps carers evacuate people with mobility difficulties during an emergency. Durable fabric and foam padding combine with a flexible wraparound design to support the passenger during movement. Continuous webbing, head and foot pulling straps, body straps and a leg strap secure the passenger for roll-and-drag evacuation.
This listing is for the standard Ulti-Mat. The manufacturer also offers a bariatric version; contact In Motion Services at 416-638-9522 for bariatric pricing and availability.
Features

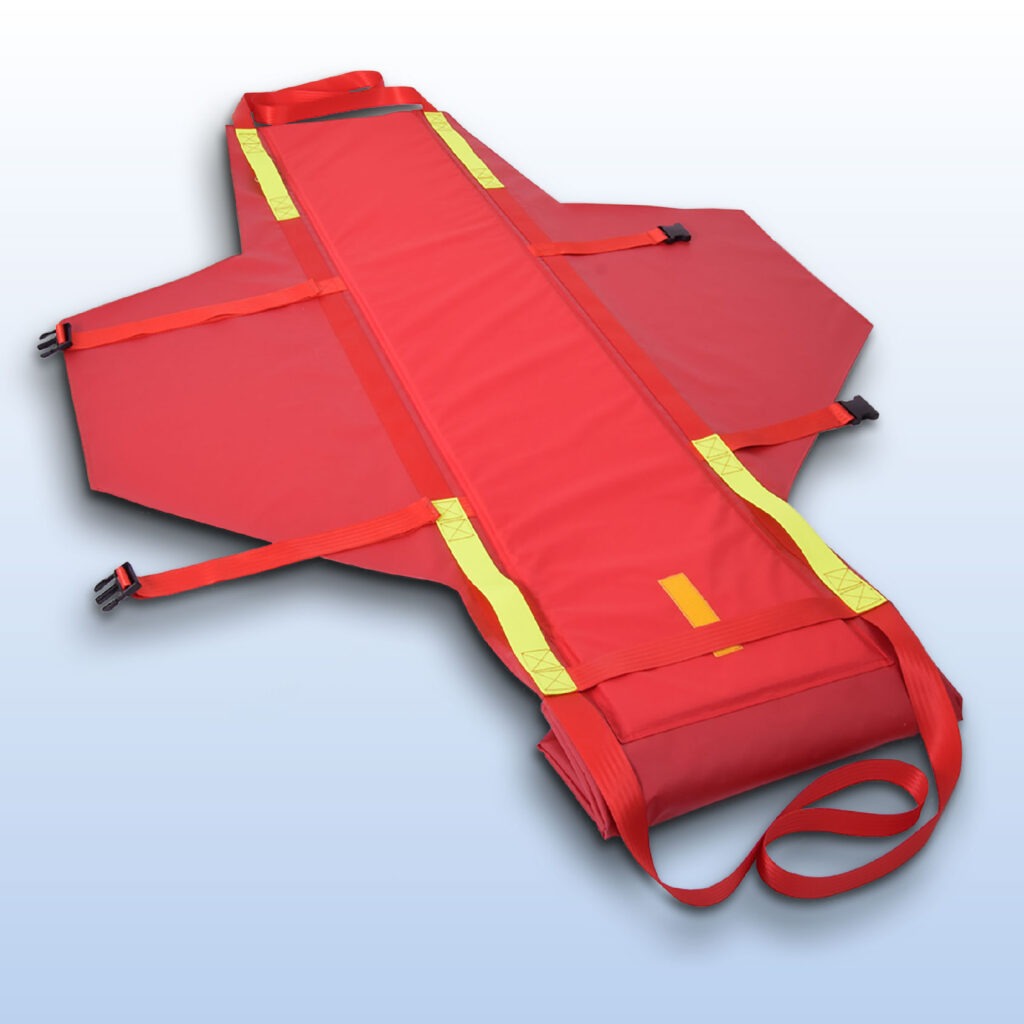

Head and foot pulling straps
Long straps at both ends let multiple carers assist with evacuation.
Winged body protection
Wraps around the passenger’s legs and arms for stabilization, with the option to leave arms outside.
Heavy-duty strap clips
Webbing and buckles help secure the passenger during transport.
Integrated foot pocket
Supports the feet during use and doubles as a compact storage bag.
Adjustable securing straps
Two body straps and a leg strap adapt the wrap to different passenger sizes.
Padded mini mattress
A foam pad provides comfort beneath the body.
Continuous webbing construction
Strong webbing runs the full length of the mat and incorporates the pulling and securing straps.
Four carrying handles
High-visibility yellow handles are positioned on the base.
Benefits
Quick deployment
Rolls out for horizontal and vertical evacuation, including travel down stairs.
Roll-and-drag method
Designed to move passengers without lifting during roll-and-drag evacuation. The manufacturer describes staff transporting people two to three times their own weight.
Passenger stabilization
Flexible wings and securing cross straps curve around the passenger for added protection.
Flexible transport
Narrow, flexible construction can move across a wide range of surfaces and can be used with a backboard or basket stretcher.

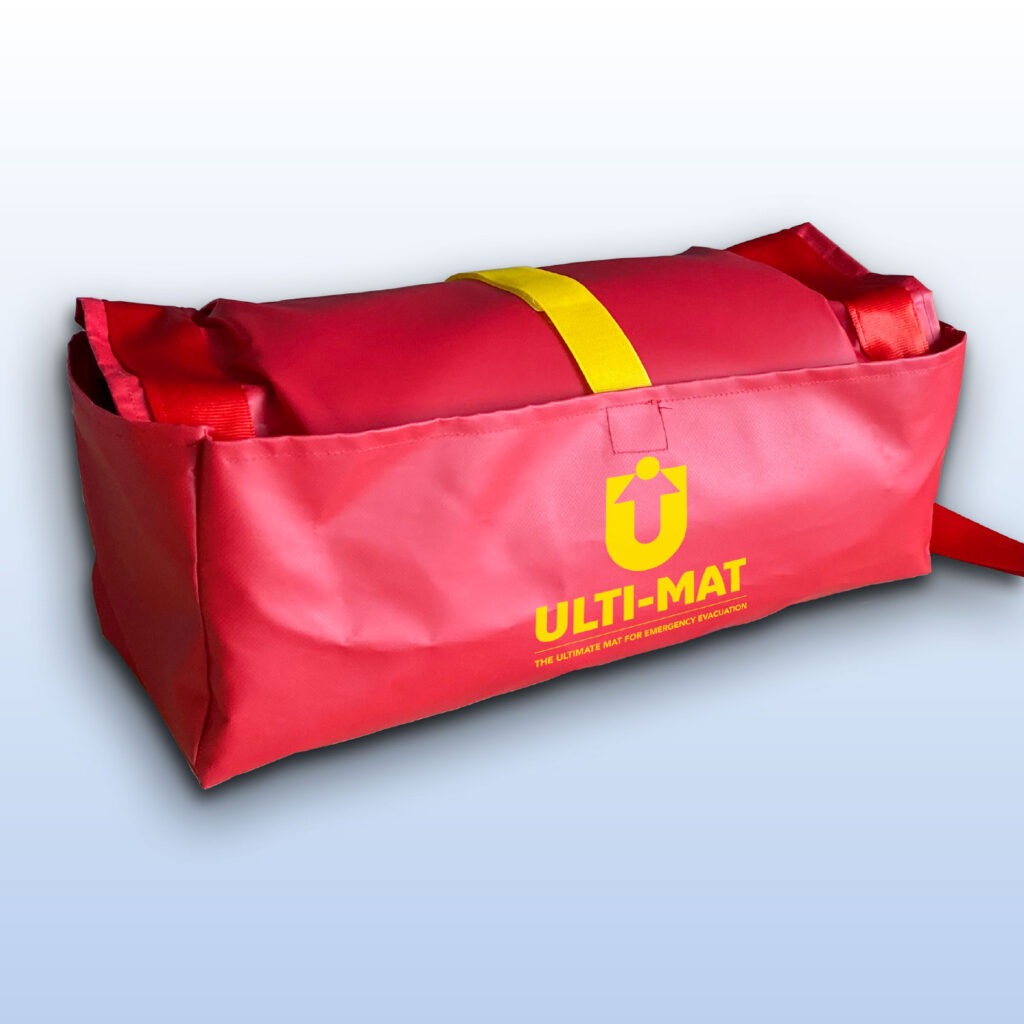

Compact storage
Rolls into its own integrated carry bag for convenient storage.
Two-person operation
Designed for two carers to assist with evacuation.
Included with the mat
- ✓Durable evacuation mat with foam padding
- ✓Integrated head and foot pulling straps
- ✓Two body securing straps and a leg strap
- ✓Heavy-duty webbing clips and buckles
- ✓Four high-visibility carrying handles
- ✓Integrated foot pocket and storage bag
Specifications
| Version offered | Standard Ulti-Mat |
|---|---|
| Operation | Two people |
| Packed dimensions (H × W × D) | 8.6 × 21.2 × 9.4 inches |
| Unpacked dimensions (L × W × D) | 78.7 × 47.3 × 1 inch |
| Weight | 9 lb |
| Standard safe working load | 660 lb |
| Bariatric safe working load | 1,000 lb (separate version) |
| Manufacturer’s test load | 1,500 lb for both versions; this is not the safe working load |
