Drive Medical Ventura 4-Wheel Scooter

Drive Medical

  • $3,899.00
    Unit price per
Shipping calculated at checkout.


Features/Benefits

The Drive Medical Ventura 4 scooter offers a great combination of performance, size, comfort and styling, making it the perfect mobility option if you're looking for the "next step up" from a compact/transportable scooter which includes a 400 lb. weight capacity. The Ventura 4 performs well both indoors and outdoors. This Deluxe model features 36AH batteries for greater range, a full safety package which includes rear view mirrors, additional lighting, and a 20" wide Captain's Seat. You can even customize the Ventura's color with the red and blue interchangeable panels. All Ventura models have four different seat height adjustments and automobile-style seat positioning which slides for forward or backward providing even more comfort. The padded armrests are height, width and angle adjustable. Controlling the Ventura cannot be easier thanks to the adjustable angle tiller that allows you to place the controls in the most comfortable position and the ergonomic delta handles which make it easier for those with limited strength or dexterity to operate the scooter. Go ahead, experience the Drive difference.

  • Features interchangeable color panels in Red and Blue

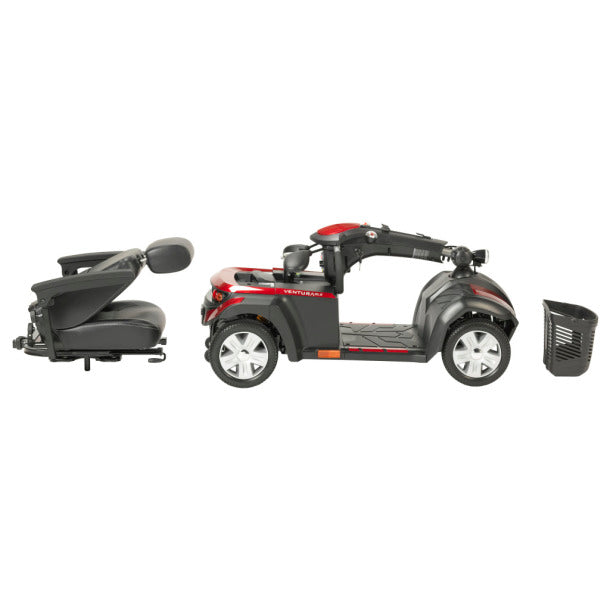

  • Easily disassembles for transport
  • 400 lb Weight Capacity
  • Includes interchangeable color panels in Red and Blue (Figure A)
  • 33 AH batteries for extended range
  • Floorboard with 23" of foot space
  • Ergonomic throttle control
  • Height-adjustable swivel seat features fold-down backrest and adjustable padded armrests
  • Seat position can be adjusted forward or backward
  • Rear suspension and Anti-tip wheels
  • Programmable controller
  • Seat back reclines and features adjustable headrest
  • Flat-free, non-marking tires
  • Large, plastic carry basket
  • Easy-to-adjust Delta tiller
  • Headlight, Turn signals/hazard lights and Rearview mirrors
  • Easy free wheel operation

Item # VENTURA420CS

Specifications

Warranty 24 Month Limited Warranty on Electronics
Product Weight 187 lb
Product Dimensions 48" (L) x 25" (W) x 45" (H)
Seat Dimensions 18" (D) x 20" (W)
Weight Capacity 400 lb
Top Speed 4 mph
Batteries (pair) 12V x 33AH
Battery Charger 2A Offboard
Climbing Angle 7.5°
Color Red & Blue
Controller PG 70A
Ground Clearance 2.5"
HCPCS N/A
Maximum Range 16 miles
Motor 24V x 350W x 5100 RPM
Seat Type Stadium
Turning Radius 54"
Warranty on Batteries 12 Month Warranty on Batteries
Warranty on Frame Limited Lifetime Warranty on Frame
Wheel Size Front: 10" x 3" | Rear: 10" x 3"



Parts Diagram

Owners Manual

Catalog Page
