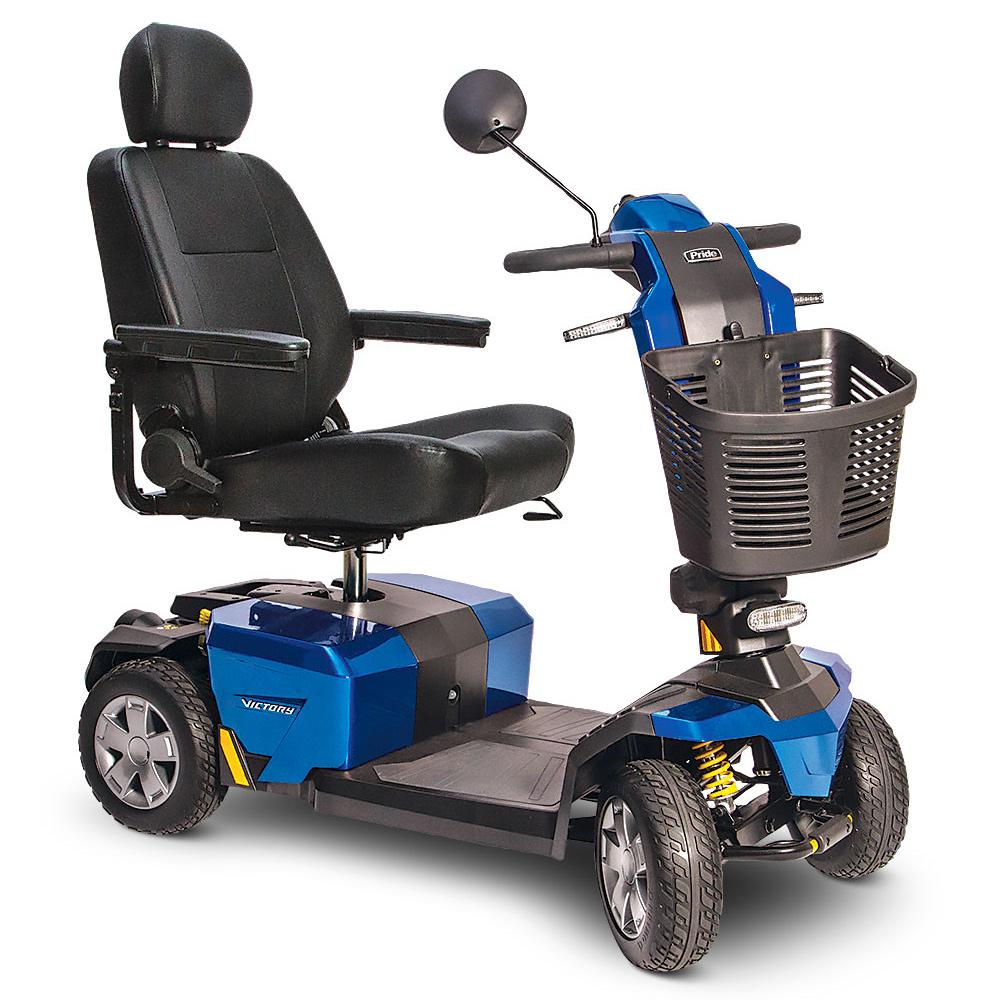

Pride Victory® 10 LX with CTS Suspension Mobility Scooter
Experience a smooth, comfortable ride over rough surfaces and varied terrain with the Victory® 10 LX with CTS Suspension.
- CTS Suspension on the front and rear of the scooter
- Feather-touch disassembly allows for easy frame separation with just one hand
- Easily adjustable delta tiller with ergonomic, wraparound handles
- Standard front basket
- Black, non-scuffing tires
- Easy-to-read LED battery meter
- An LED lighting package includes directional signals, curb and rear lights, and a courtesy light under the tiller
- Handy storage compartment below the tiller
- Enhanced flush-mounted horn buttons
| Model | Victory 10 LX with CTS Suspension |
| Model Number | S710LX |
| Front Tires | 3.5" x 10" Solid |
| Rear Tires | 3.5" x 10" Solid |
| Maximum Speed* | Up to 5.6 mph |
| Ground Clearance | 2.4" at transaxle, 0.9" at anti-tip, 2.9" at front frame |
| Turning Radius** | 60" |
| Overall Length** | 47" |
| Overall Width of Base** | 22.25" |
| Seat-to-Ground Height Range | 23.5"-25.5" |
| Seat Type | Reclining High-back with sliders & headrest (18x18) |
| Weight** | 179 lbs. |
| Seat-to-Deck Height Range | 16.5"-18.5” |
| Battery Weight | 32 lbs. each |
| Battery Requirements | (2)40AH |
| Maximum Range Per Charge* | Up to 16 miles |
| Battery Charger | Off-board, 5A |
| Suspension | Front and Rear |
| Maximum Weight Capacity | 400 lbs. |
| Standard Body Colors | Candy Apple Red, True Blue |
| Weight of Heaviest Piece** | 78 lbs. (Front section) |
| Warranty | Lifetime limited on frame; 2-Year limited on Electronics; 2-Year limited on Drivetrain |
