Description

WHILL Model C2: Portable Power Wheelchair

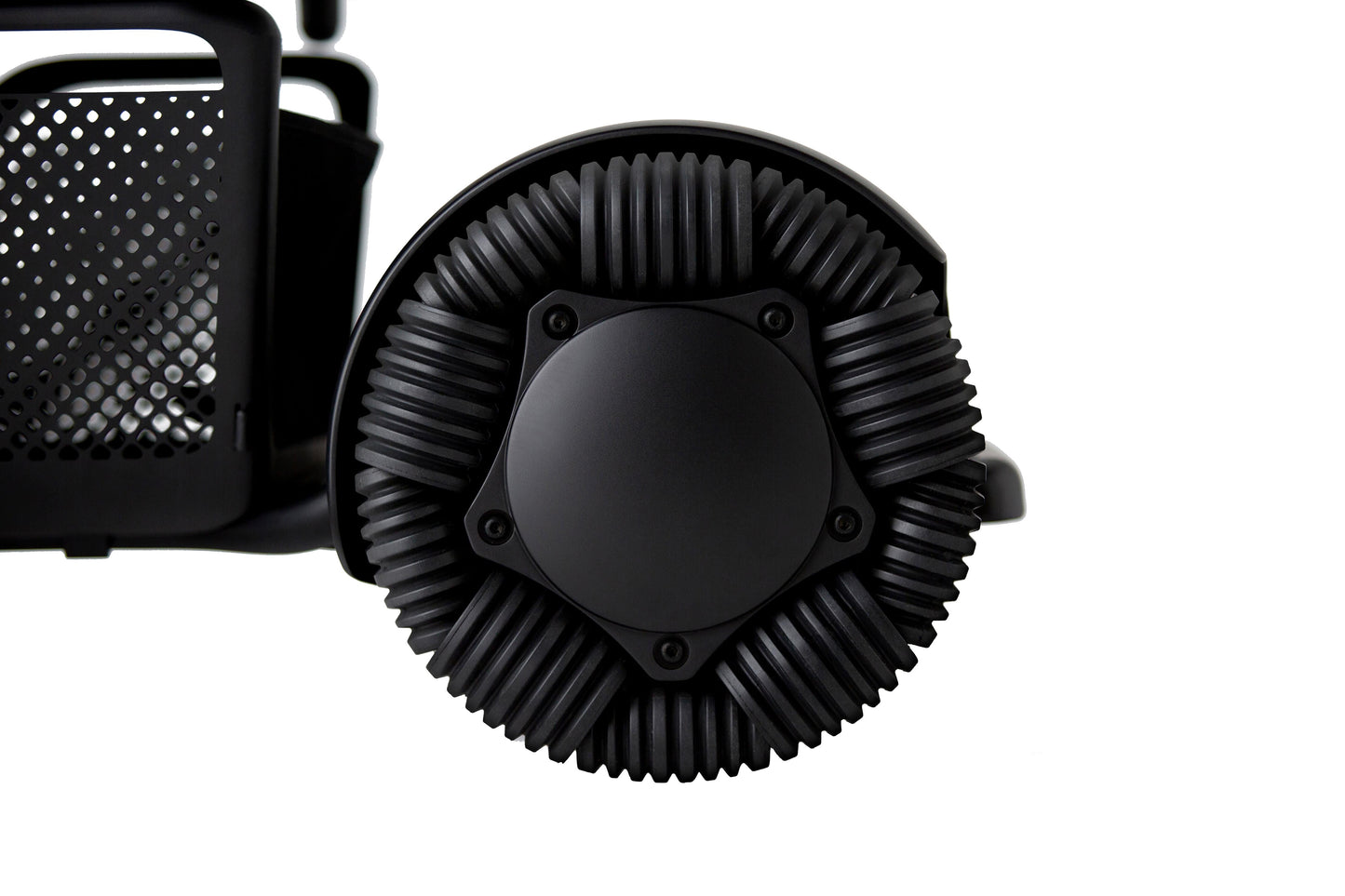

The Model C2 combines patented omni-directional wheels, dual motors and independent four-wheel suspension for everyday mobility. A 760 mm turning radius helps in confined spaces, while the drive system supports straighter travel on uneven paths.

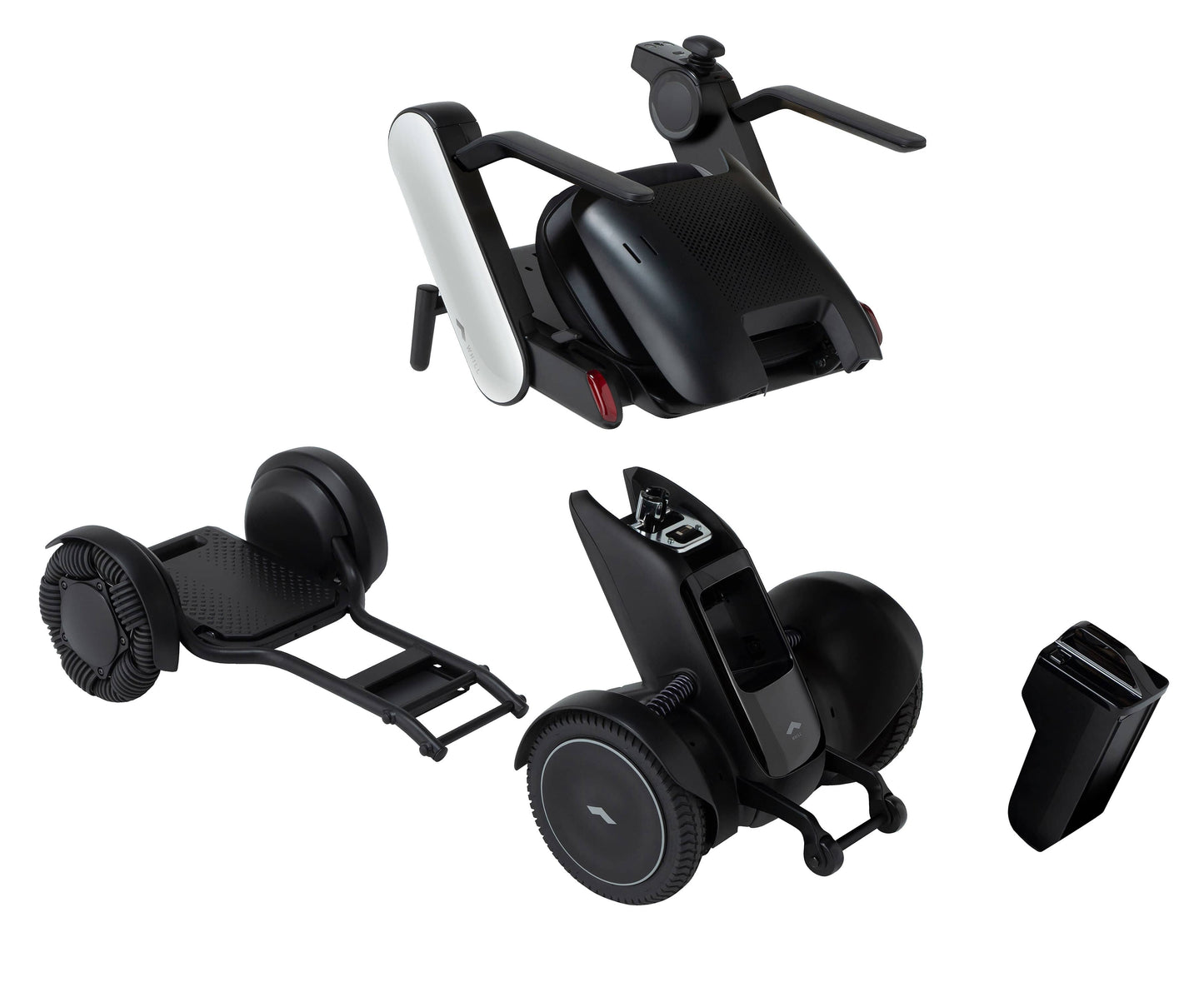

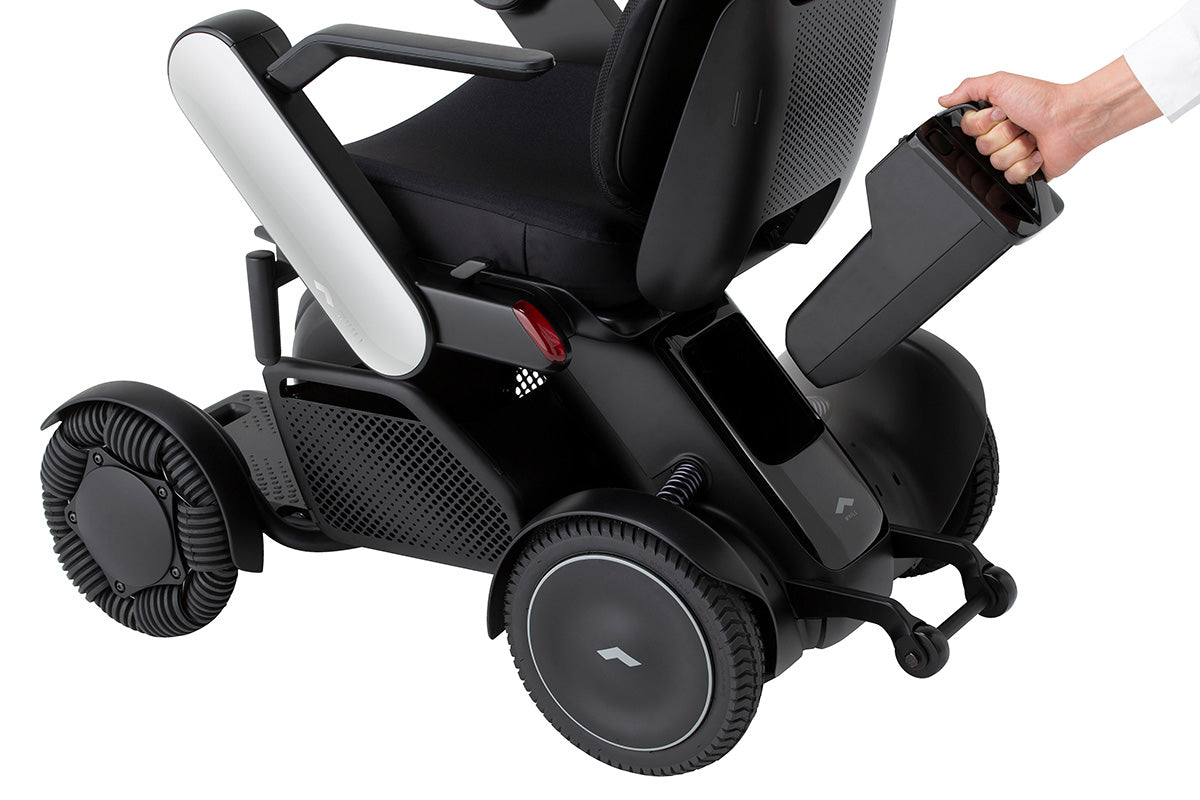

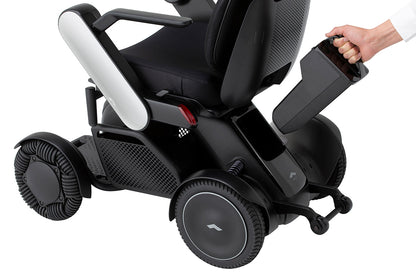

Choose a 16-, 18- or 20-inch seat and adjust the seat height, back support and armrests for your fit. Lift-up armrests help with transfers. For transport, remove the battery and separate the seat and drive bases. Under-seat storage keeps essentials close.

Specifications

Performance

Driving Range with Full Battery Charge	Up to 20 km (12.4 miles)
Maximum Speed *1	Up to 8 km/h (5 mph) or 6 km/h (3.7 mph), depending on local regulations and device configuration
Ground Clearance	3 inches (76 mm)
Obstacle Clearance	2 inches (50 mm)
Maximum Incline	10 degrees
Turning Radius	29.9 inches (760 mm)
Weight Capacity	300 pounds (136 kg)
Air Travel Approved	Yes
Weather Tested	IPX4
Suspension	4-Wheel Independent

Size and weight

Seat Sizes	W 16 x D 16 inches (W 400 x D 400 mm) W 18 x D 18 inches (W 450 x D 450 mm) W 20 x D 18 inches (W 500 x D 450 mm)
Device Width *2	21.8 to 25.6 inches (554 to 650 mm)
Device Length	38.8 inches (985 mm)
Device Height *3	26.4 to 28.7 inches (670 to 730 mm)
Device Weight *4	114.4–116.4 lb (51.9–52.8 kg), depending on seat size
Battery Weight	6 pounds (2.7 kg)
Seat Assembly Weight	26.9 to 28.9 pounds (12.2 to 13.1 kg)
Front Drive Base Weight	38.8 pounds (17.6 kg)
Rear Drive Base Weight	42.8 pounds (19.4 kg)

Battery and power

Charging Time	Up to 5 hours
Battery Type	Lithium-ion

Adjustments

Seat Height *6	15.9 to 19.1 inches (405 to 485 mm)
Controller Position	Right, Left
Controller Height *8	26.4 to 28.7 inches (670 to 730 mm)
Back Support Angle	90, 95, 100°
Back Support Height *9	13.4 to 18.1 inches (340 to 460 mm)

*1 Maximum speed depends on local regulations and device configuration. *2 Overall width varies with seat size. *3 Height is measured at the controller with the back support folded down. *4 Weight varies with seat size and includes the 6 lb (2.7 kg) battery. *6 Seat height is measured from the floor. *8 Controller height is measured from the floor to the top of the joystick. *9 Back-support height is measured from the seat to the top of the cushion.

Range varies with rider weight, terrain, temperature, driving settings and battery condition. Confirm battery carriage and assistance arrangements with your airline before travelling. The Model C2 must not be used as a seat while being transported.

Included with your Model C2

WHILL Model C2 power wheelchair
Removable lithium-ion battery and charger
Seat cushion
Under-seat storage basket
Arm covers in your selected colour

Connect with the WHILL app

View device information, change speed settings, lock or unlock the chair and use remote control from a compatible smartphone. Availability varies by location.
