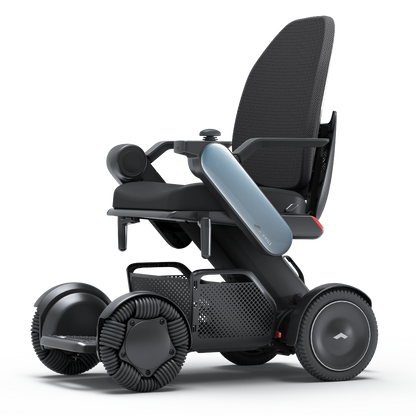

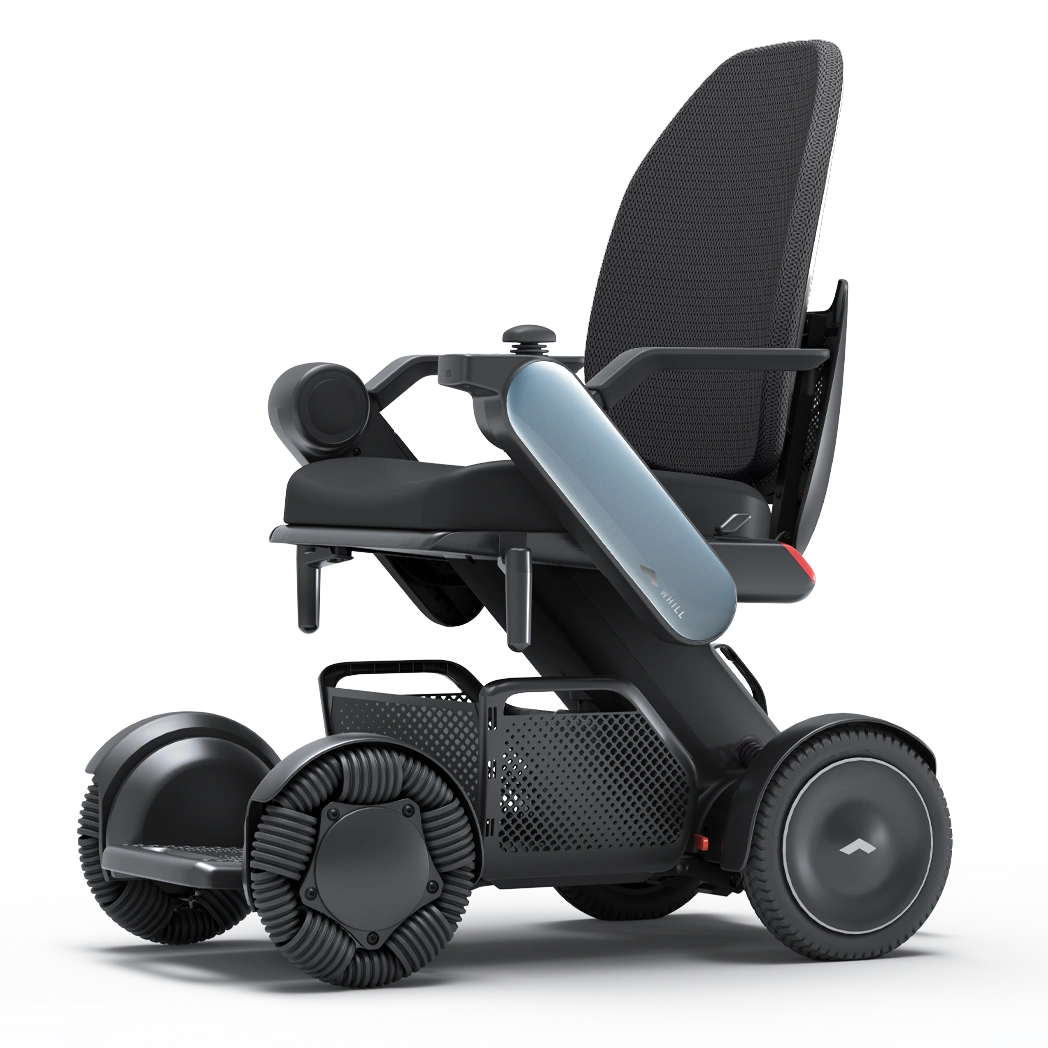

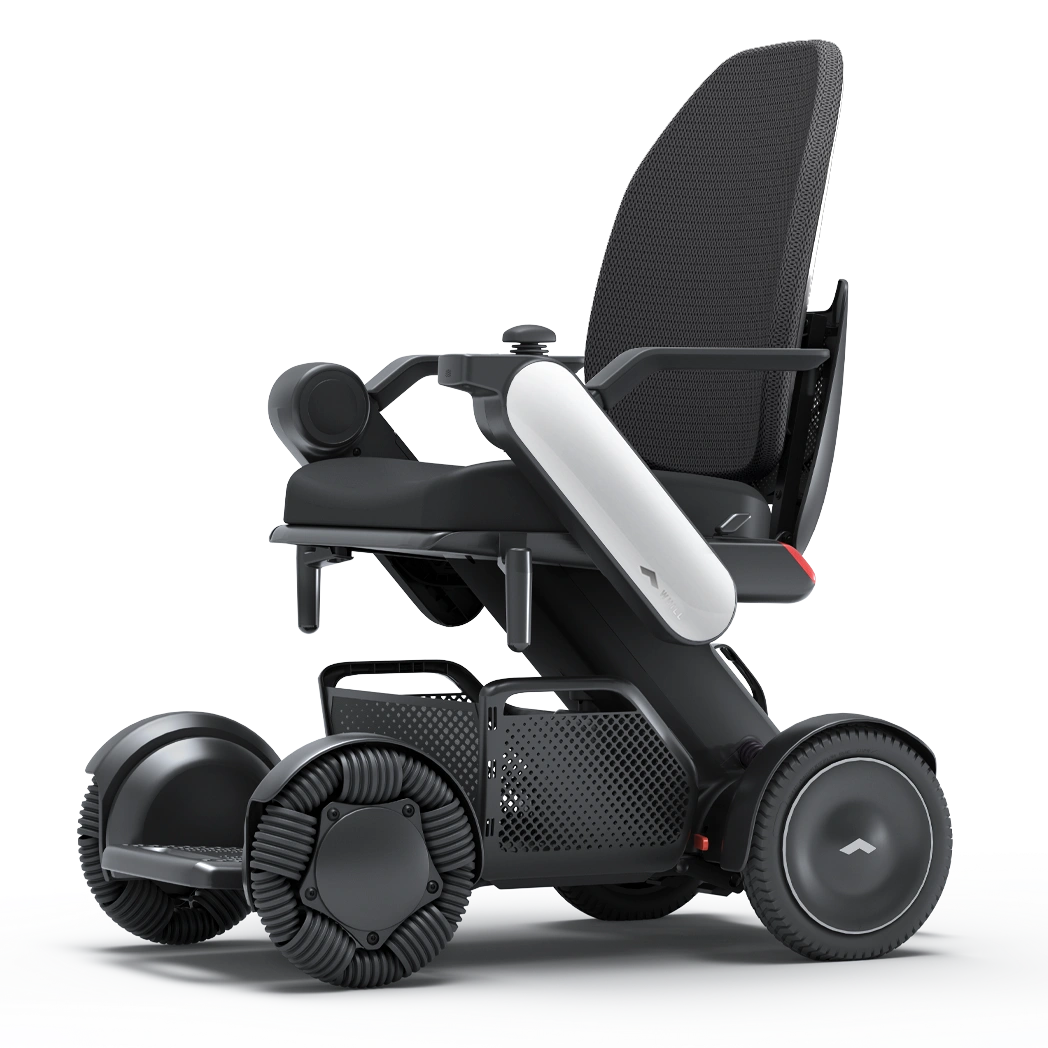

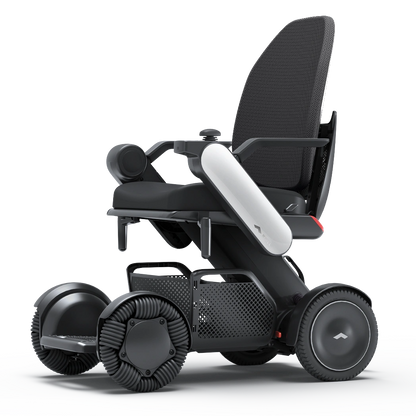

WHILL Model C2 High Back

About the WHILL Model C2 High Back: Customizable Power Wheelchair

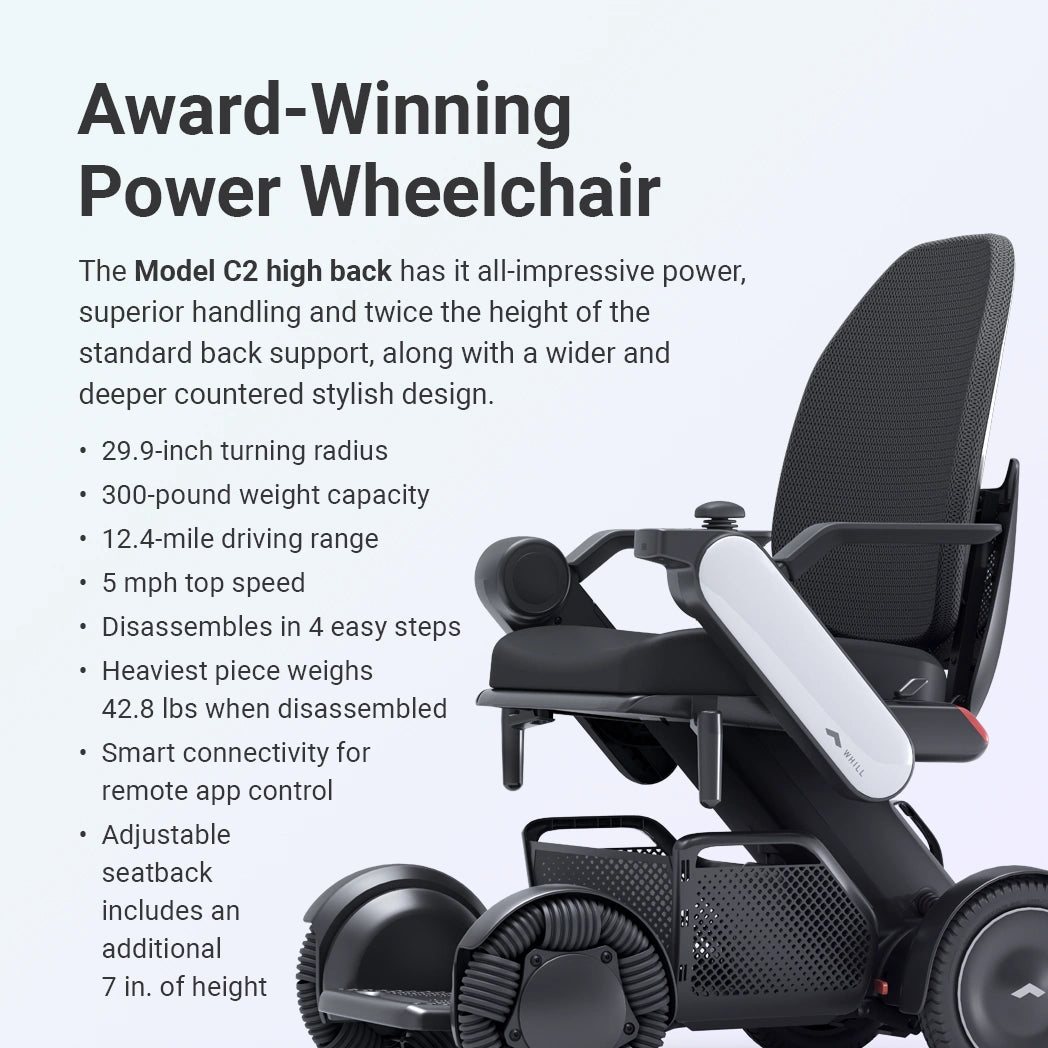

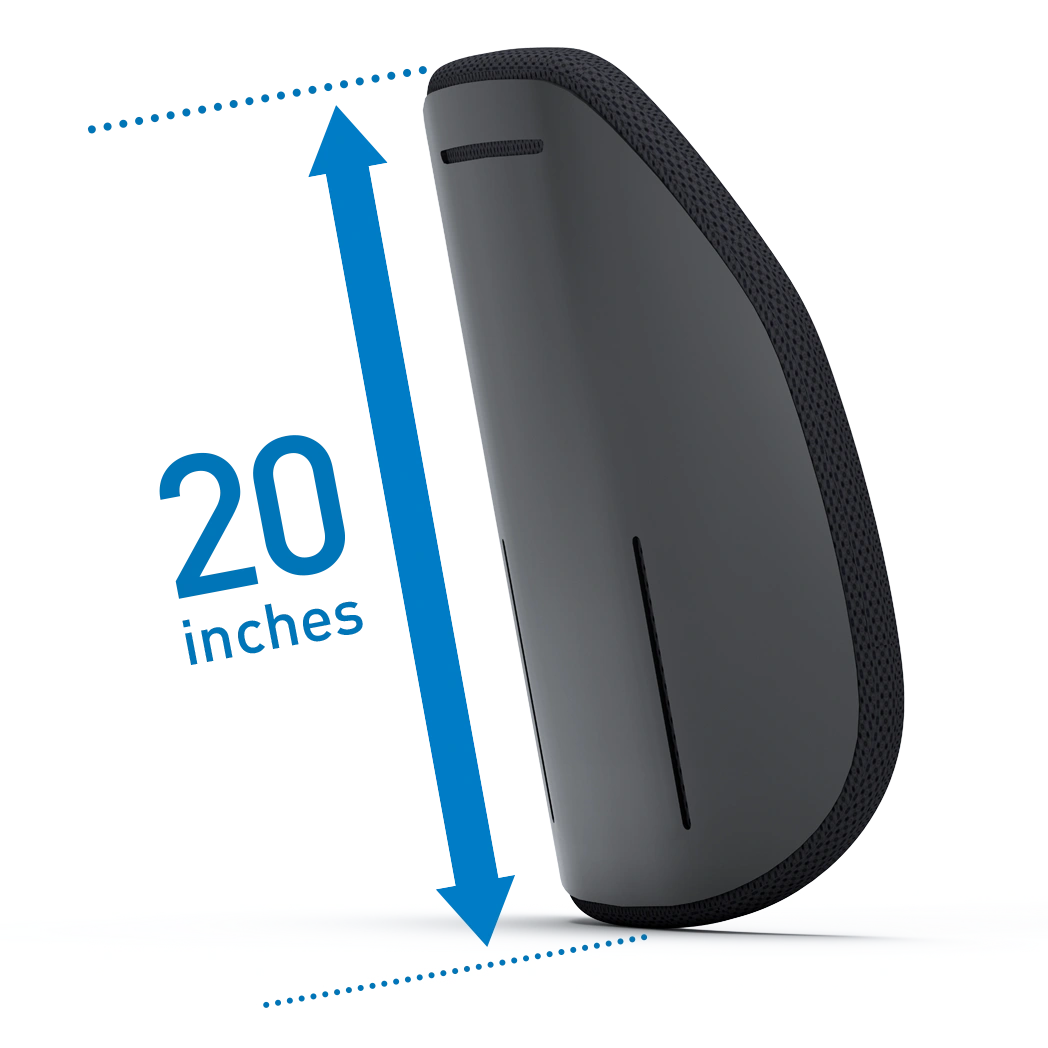

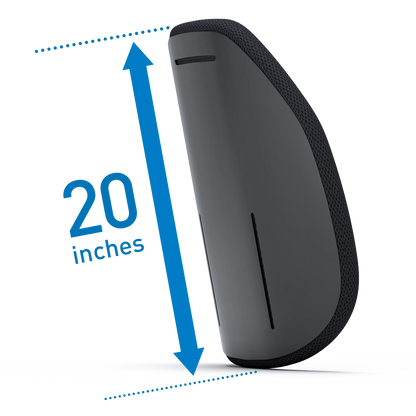

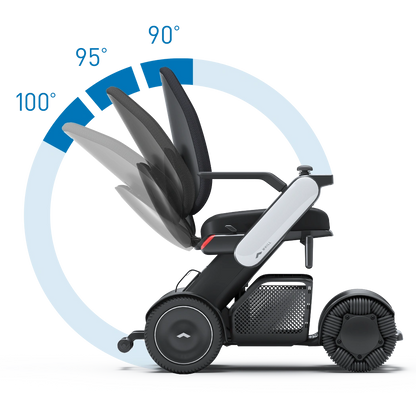

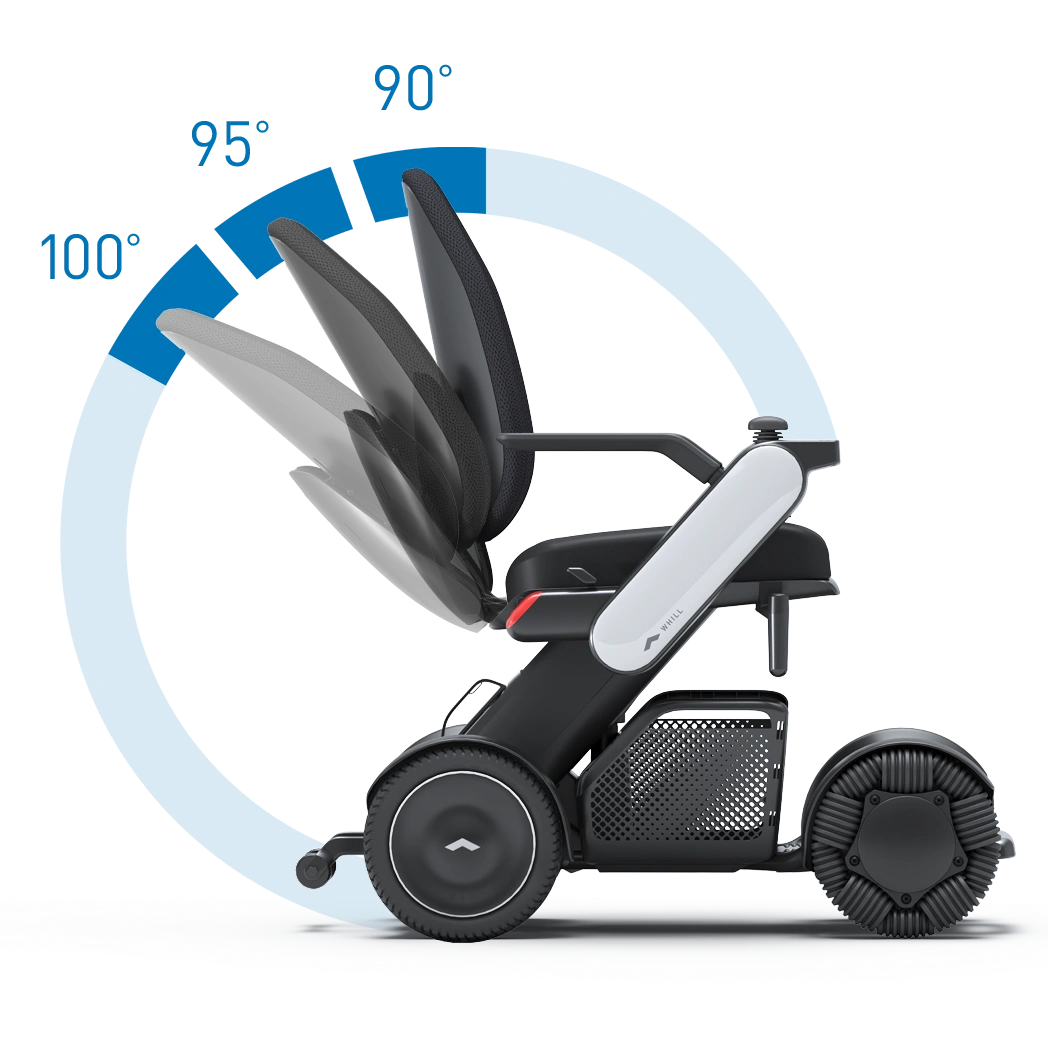

The WHILL Model C2 High Back power chair has it all — the same power, design, and superior handling of the standard Model C2, now with a taller back support that provides more comfort for the user. At 20 inches, the adjustable seatback is double the height of the regular Model C2 and can be set at an angle of either 90, 95, or 100 degrees.

When it comes to portable electric wheelchairs, this device is in a class of its own. With its unique combination of luxury, performance, and innovative technology like patented omni-directional wheels, the Model C2 gives users more freedom in their everyday lives and sets a new standard for what a mobility device can be. We designed the WHILL Model C2 High Back to provide users with the ultimate wheelchair experience, allowing you to get more out of life without sacrificing comfort or style. Its sleek and supportive design is a testament to our mission of creating high-quality electric wheelchairs that allow everyone to explore the world with confidence.

Please note: the High Back is currently only available on the 18″ and 20″ Model C2 seat widths. It is not available on the 16″ seat width.

FDA Compliance: The WHILL Model C2 has received 510(k) clearance for marketing as a Class II medical device

Key Features:

Remote driving via cellphone: The Whill Model C2 can be easily controlled using your smartphone, providing a unique and convenient way to maneuver the chair when not in use, making it perfect for tight spaces or when assisting someone with limited mobility.
Sleek and modern design: The Whill Model C2 features a stylish, eye-catching design that sets it apart from traditional power chairs.
Easy to disassemble: The Model C2 can be quickly and easily disassembled into three lightweight components for stress-free transportation and storage.
Patented omni-wheel technology: The unique omni-wheel system provides unparalleled maneuverability, allowing the Model C2 to turn on a dime and navigate tight spaces with ease.
Advanced driving features: Four driving modes and an easy-to-use joystick ensure smooth control and precise navigation.
Comfortable seating: The ergonomic seat and adjustable armrests provide maximum comfort during extended periods of use.
Long battery life: Travel up to 16 miles on a single charge, providing reliable performance for daily use.
High weight capacity: The Whill Model C2 supports users up to 300 lbs.

Performance

Driving Range with Full Battery Charge	Up to 12.4 miles (20 km)
Maximum Speed *1	5 mph (8 km/h) 3.7 mph (6 km/h)
Ground Clearance	3 inches (76 mm)
Obstacle Clearance	2 inches (50 mm)
Maximum Incline	10 degrees
Turning Radius	29.9 inches (760 mm)
Weight Capacity	300 pounds (136 kg)
Air Travel Approved	Yes
Weather Tested	IPX4
Suspension	4-Wheel Independent

*1 The maximum speed depends on local regulations.

Size and Weight

Seat Sizes	W 18 x D 18 inches (W 450 x D 450 mm) W 20 x D 18 inches (W 500 x D 450 mm)
Device Width *2	23.6 to 25.6 inches (554 to 650 mm)
Device Length	38.8 inches (985 mm)
Device Height *3	26.4 to 28.7 inches (670 to 730 mm)
Device Weight *4	116 pounds (52.6 kg) 116.4 pounds (52.8 kg)
Battery Weight	6 pounds (2.7 kg)
Seat Assembly Weight	26.9 to 28.9 pounds (12.2 to 13.1 kg)
Front Drive Base Weight	38.8 pounds (17.6 kg)
Rear Drive Base Weight	42.8 pounds (19.4 kg)

*2 Total device width based on seat width.

*3 At top of controller. Highest point of device with back support folded down.

*4 Includes battery (6 lbs (2.7 kg)). Device weight varies by seat size.

Battery and Power

Charging Time	Up to 5 hours
Battery Type	Lithium-ion

Adjustments

Seat Height *6	15.9 to 19.1 inches (405 to 485 mm)
Controller Position *7	Right, Left
Controller Height *8	26.4 to 28.7 inches (670 to 730 mm)
Back Support Angle	90, 95, 100°
Back Support Height *9	21.8 to 26.5 inches (554 to 674 mm)
