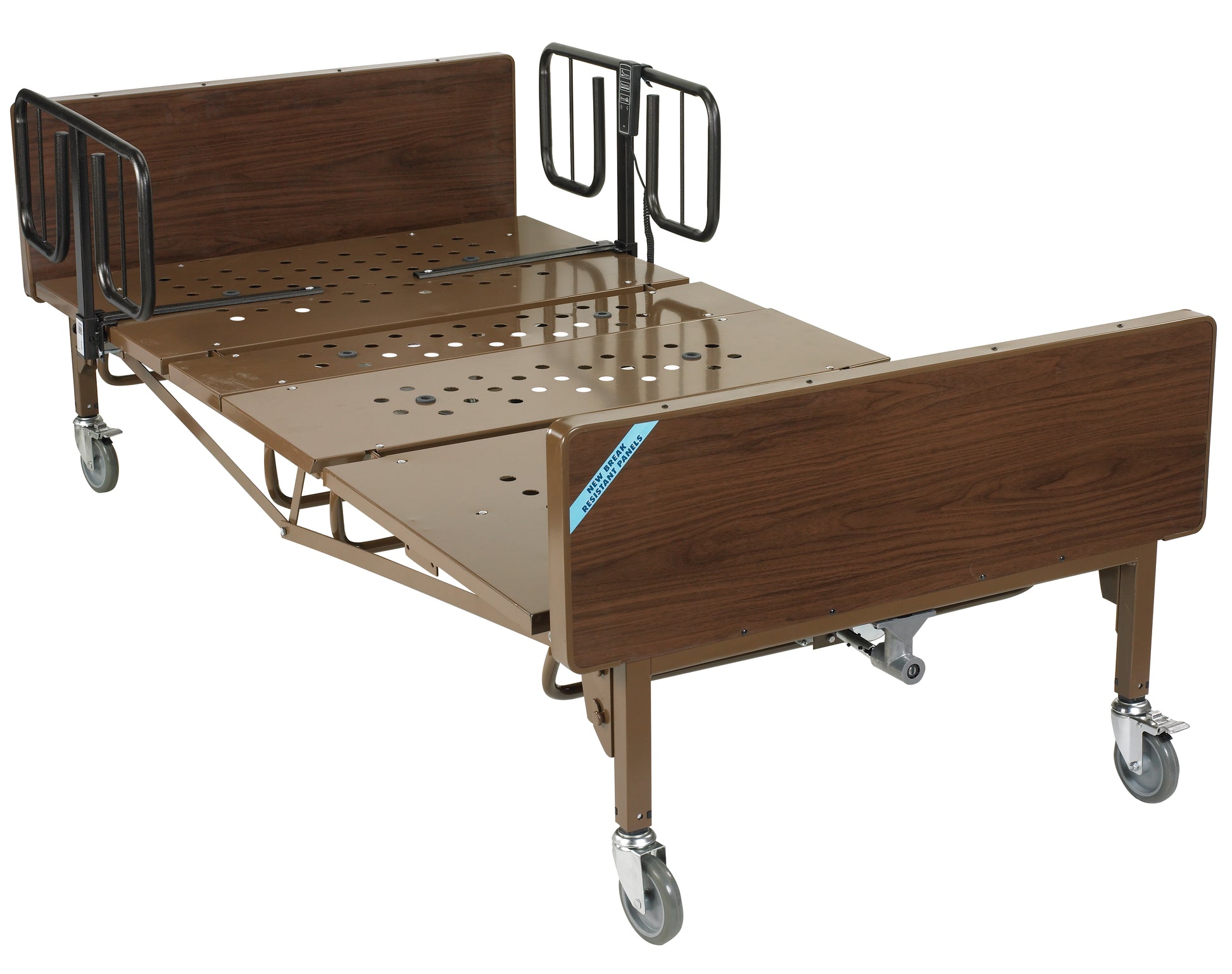

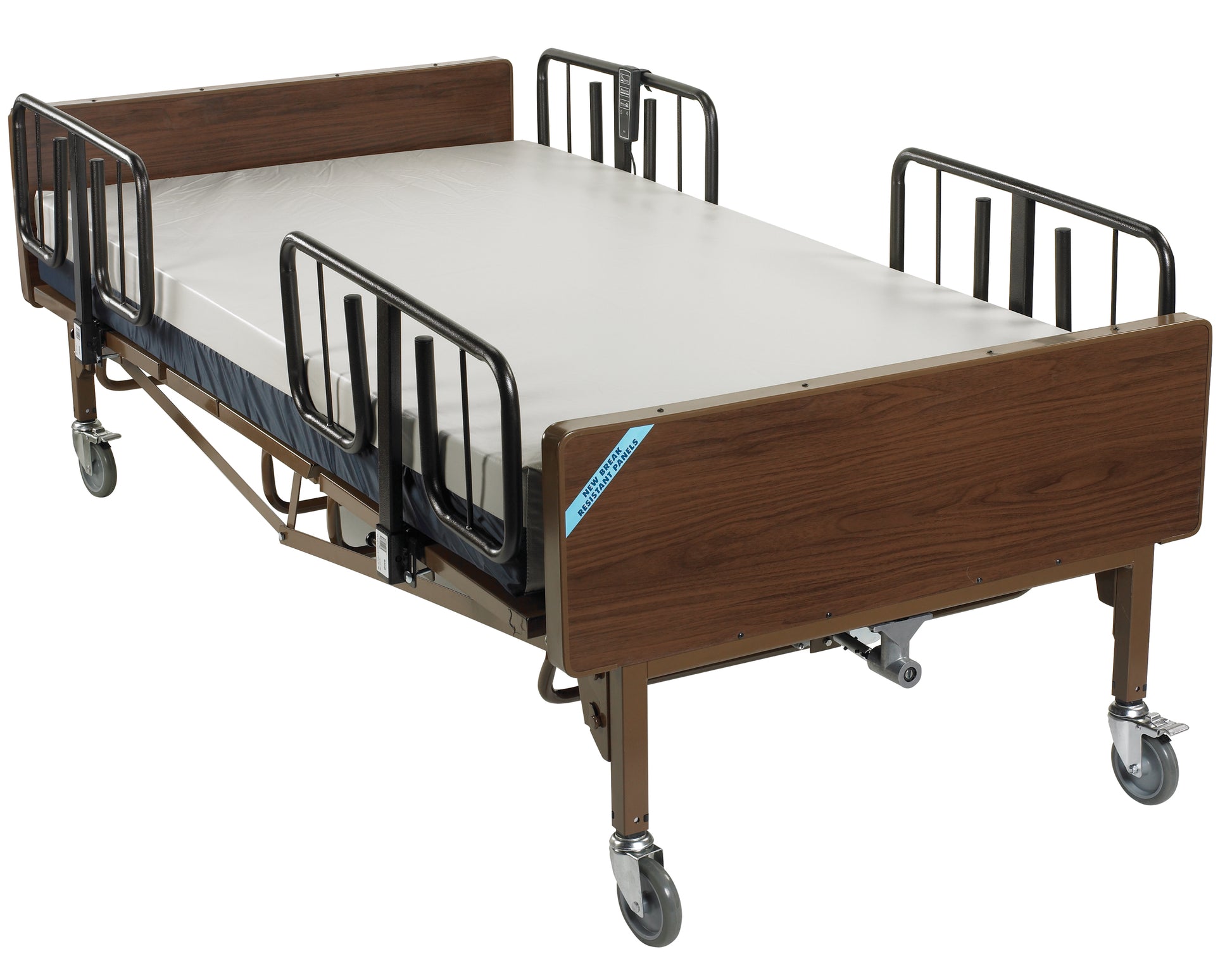

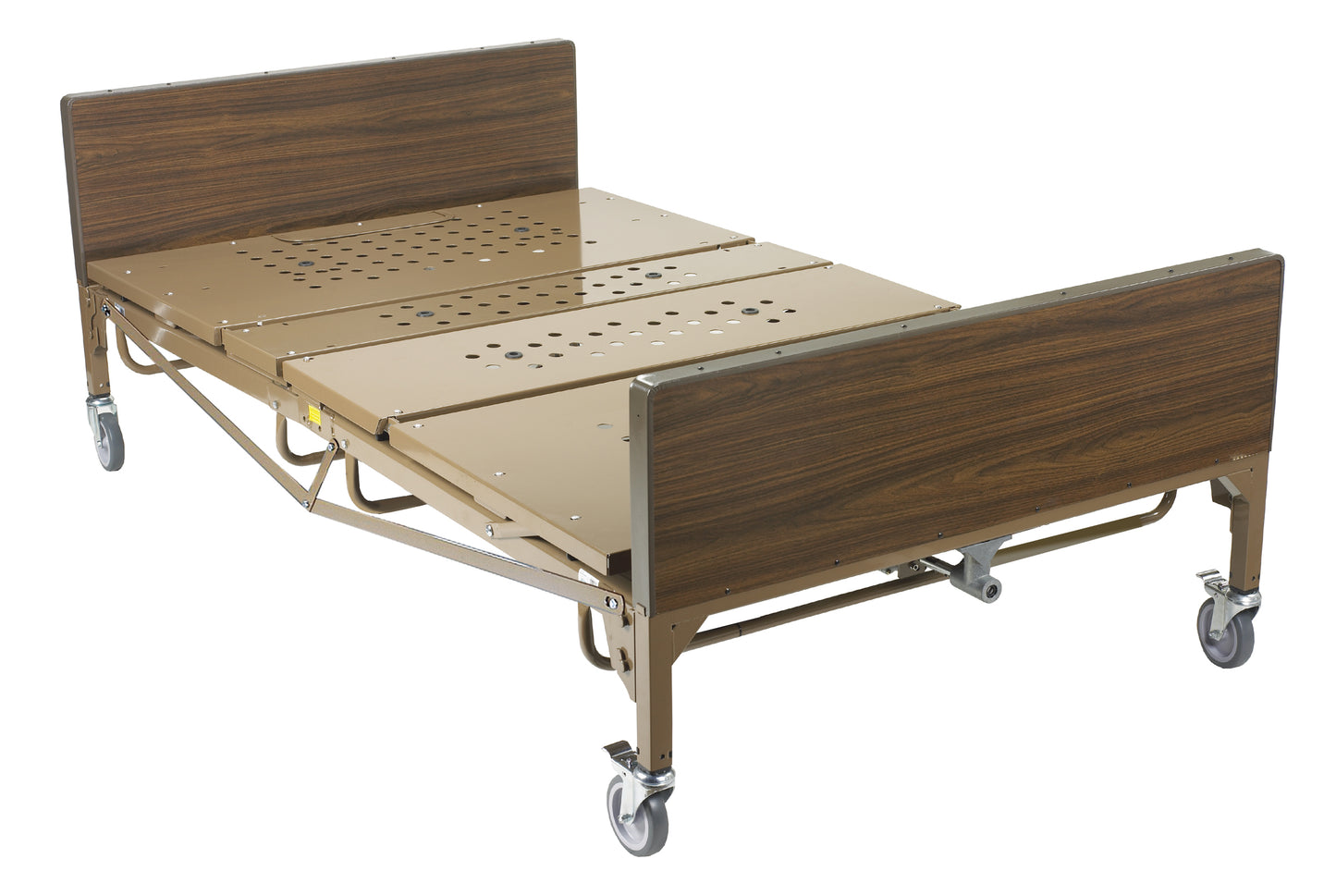

Full Electric Heavy Duty Bariatric Hospital Bed, with Mattress and 1 Set of T Rails

Drive Medical

  • $7,399.00
    Unit price per
Shipping calculated at checkout.

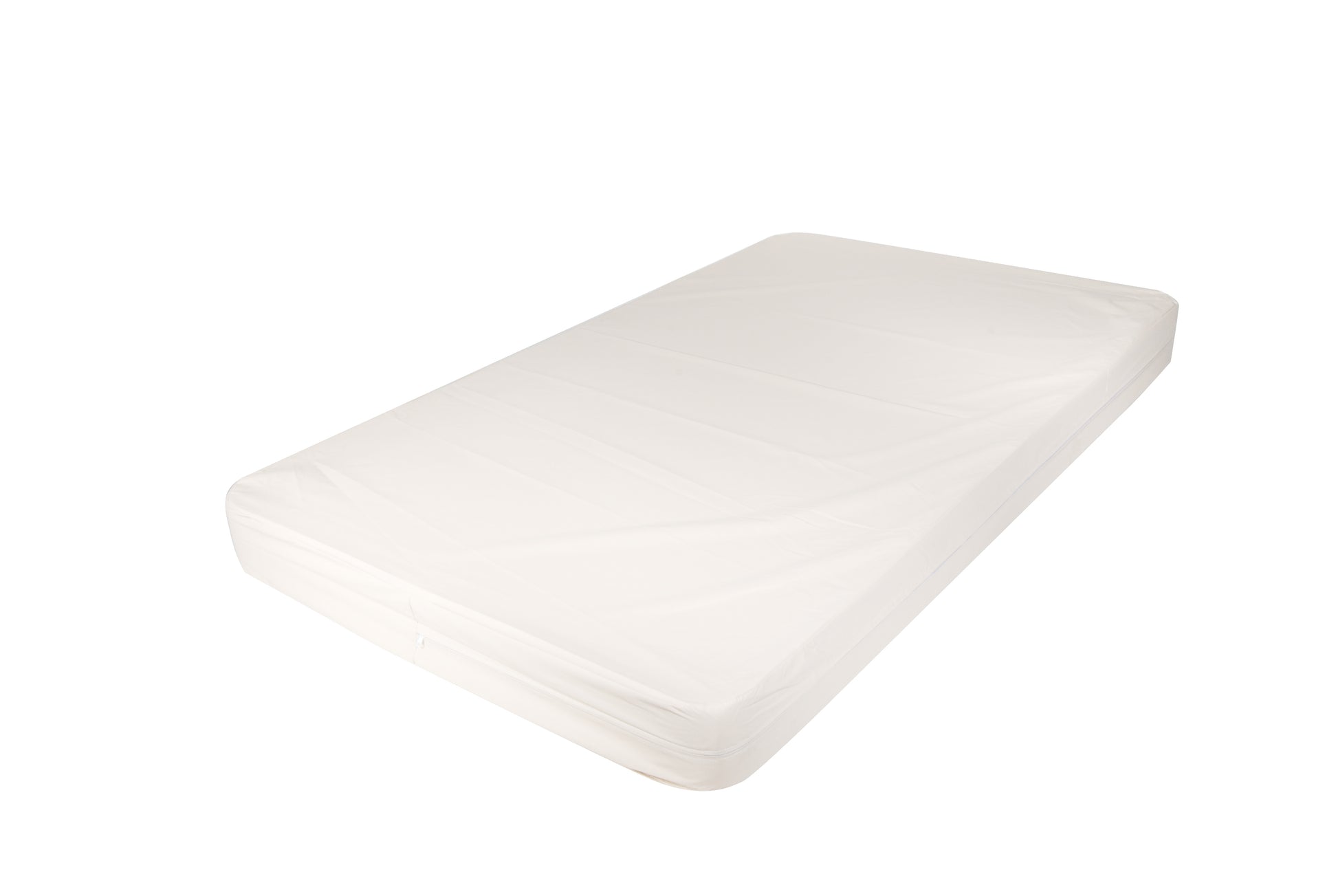

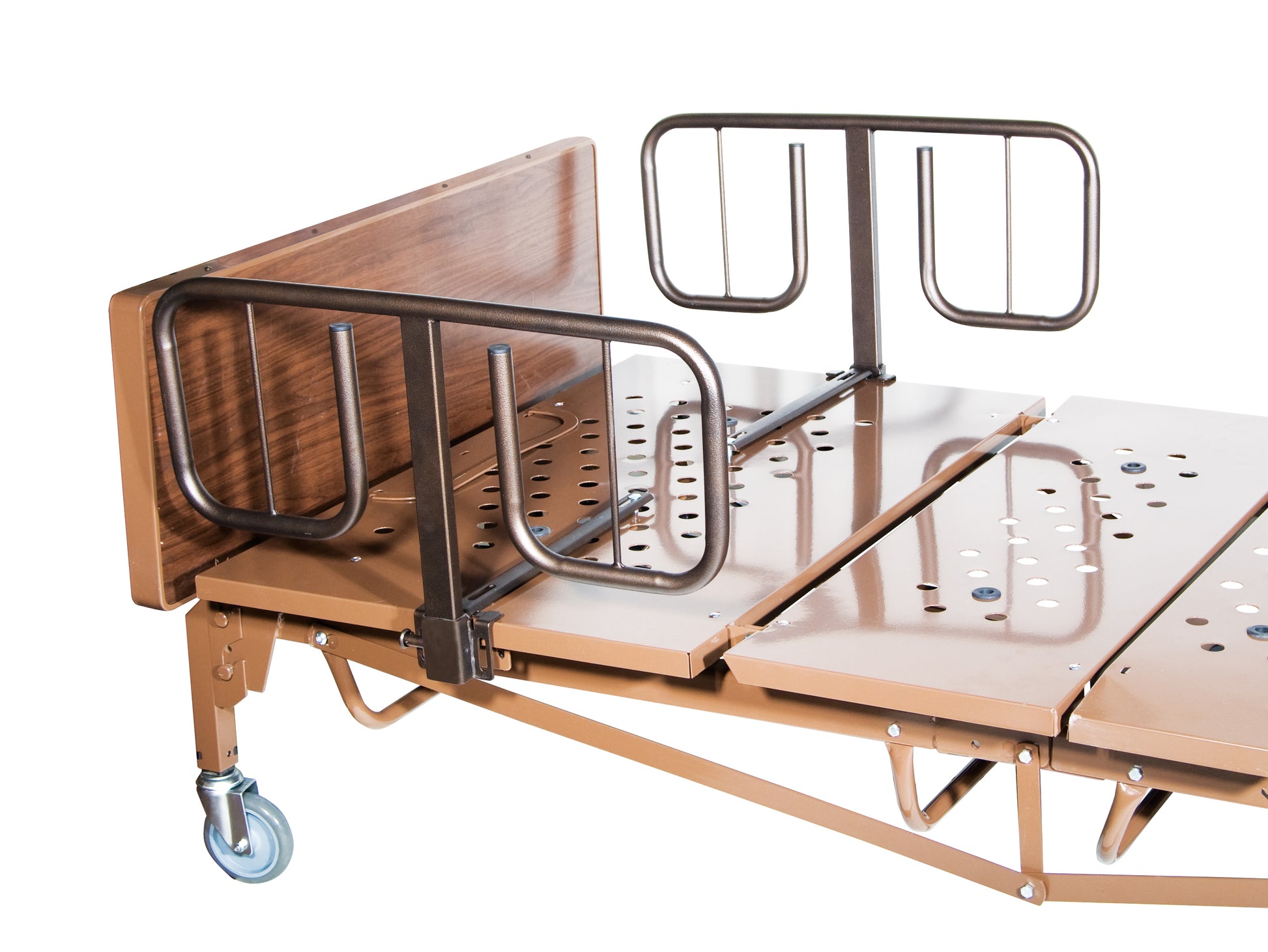

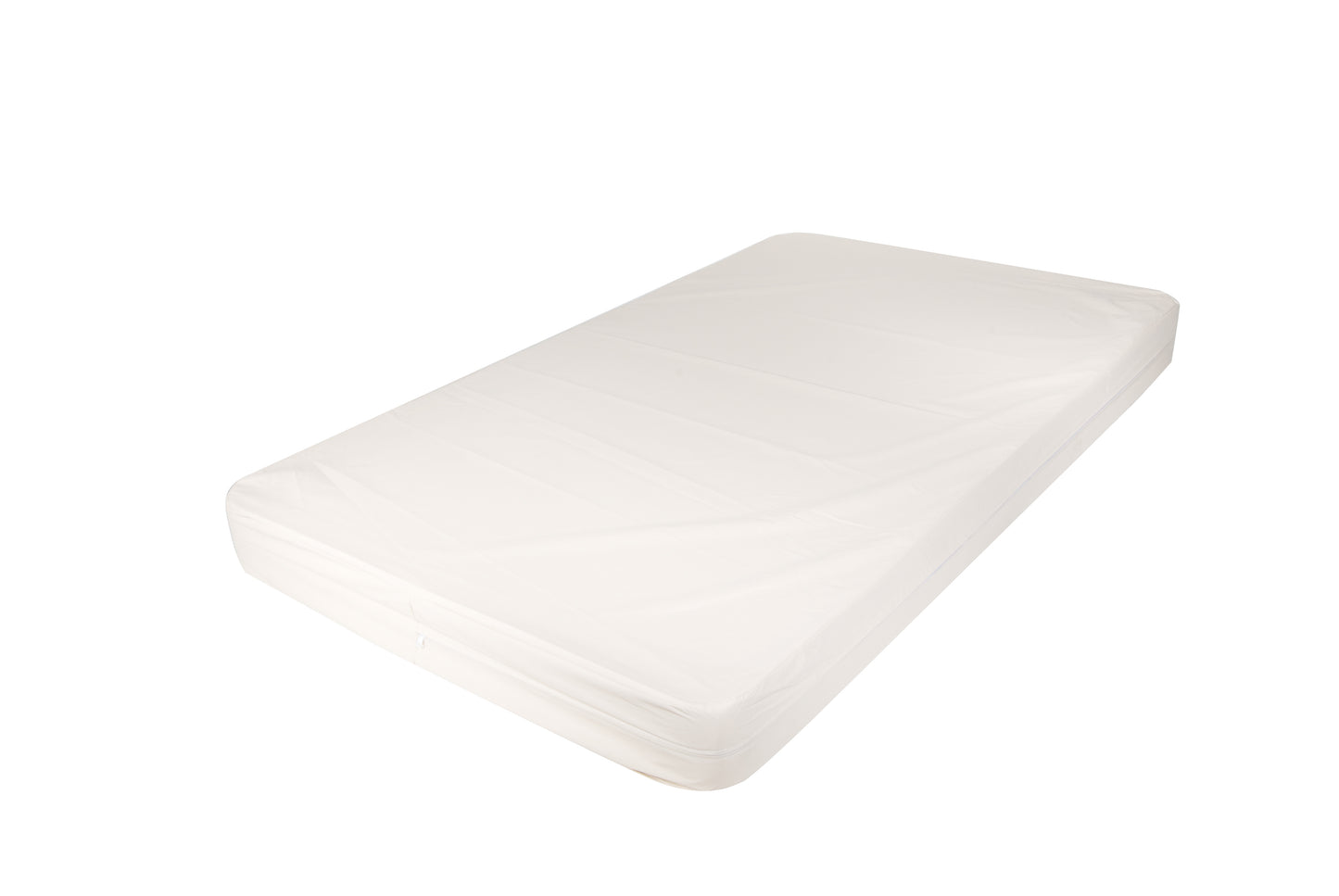

Thanks to a heavy-duty steel frame and an extra-large sleep surface, this electric bariatric bed (with one half side rail) by Drive Medical guarantees strength and safety. This sturdy product can withstand a weight capacity of up to 750 pounds, and features an extra-wide 48" surface that is significantly larger than a conventional bed. One set of side rails ensure additional support and safety. The hand control included with this fully electric bed provides multiple bed positions, with a split-pan design that operates smoothly and quietly, adjusting your patient into proper position with little fuss. A manual crank is even included in case of an emergency. Upon arrival, the bed and its removable bed ends can be assembled tool free. This bed package comes with the bed frame, 1 set of "T" Rails, and a Bariatric Foam Mattress.

Features and Benefits
  • Quiet, smooth operation
  • Heavy-duty frame ensures strength and patient safety
  • All steel construction
  • Larger sleep surface than conventional bed
  • Split-pan design with removable bed ends is easy to set up
  • No tools necessary for set up
  • Hand control provides for multiple bed positioning for patients
  • Emergency manual crank included
  • Weight Capacity 750 lbs

Product Specifications
  • Actual Product Weight: 328 lbs
  • Bed Height (Max): 20.625"
  • Bed Height (Min): 12.375"
  • Bed Height w/ Casters (Max): 26.625"
  • Bed Height w/ Casters (Min): 18.375"
  • Casters: 6"
  • Foot Section Height (Max): 38.375"
  • Foot Section Height (Min): 29.875"
  • Foot Section Height w/ Casters (Max): 41.875"
  • Foot Section Height w/ Casters (Min): 35.875"
  • Footboard Height (Max): 31"
  • Footboard Height (Min): 22.75"
  • Footboard Height w/ Casters (Max): 37"
  • Footboard Height w/ Casters (Min): 28.75"
  • Ground Clearance: 11.625"-19.875"
  • Ground Clearance w/ Casters: 17.625"-23.625"
  • Head Section Height (Max): 43.75"
  • Head Section Height (Min): 35.25"
  • Head Section Height w/ Casters (Max): 49.75"
  • Head Section Height w/ Casters (Min): 41.25"
  • Headboard Height (Max): 33.25"
  • Headboard Height (Min): 25"
  • Headboard Height w/ Casters (Max): 39.25"
  • Headboard Height w/ Casters (Min): 31"
  • Motor: 15302MHN (Head); 15300MF (Foot); 15302HL (Hi/Low)
  • Overall Product Height: 39.25"
  • Overall Product Length: 94"
  • Overall Product Width: 48.5"
  • Primary Product Color: Brown
  • Primary Product Material: Steel
  • Product Weight Capacity: 750 lbs
  • Warranty: Limited Lifetime on Welds; 5 Year Limited on Frame; 1 Year Limited on all Other Parts and Components

Model # 15302bv-pkg
